Component Location Overview - Roof Trim Panel Lamps

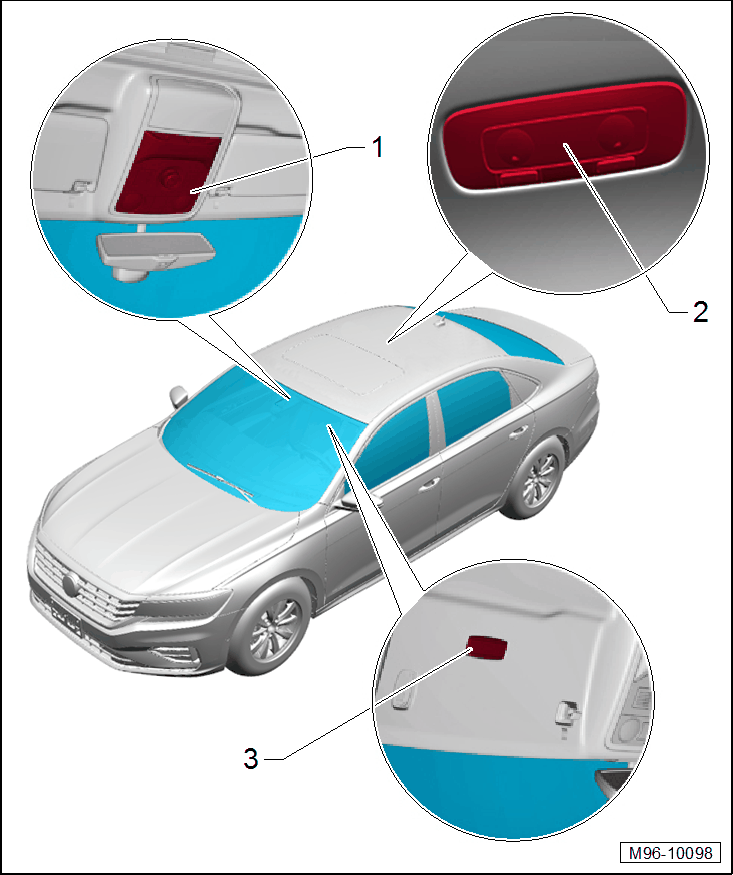

Fig 1: Roof Trim Panel Lamps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Front Interior Lamp -W1-
   • Bulb, Replacing. Refer to Front Interior Lamp -W1- /Front Passenger Reading Lamp -W13- /Driver Reading Lamp -W19-, REPLACING

     Center Reading Lamps

   • Removing and installing
2. Rear Interior Lamp -W43-
   • Replacing the bulb
3. Front Passenger Vanity Mirror Lamp -W14- /Driver Vanity Mirror Lamp -W20-
   • Removing and Installing. Refer to DRIVER/FRONT PASSENGER VANITY MIRROR LAMP -W20- / -W14-, REMOVING AND INSTALLING .
