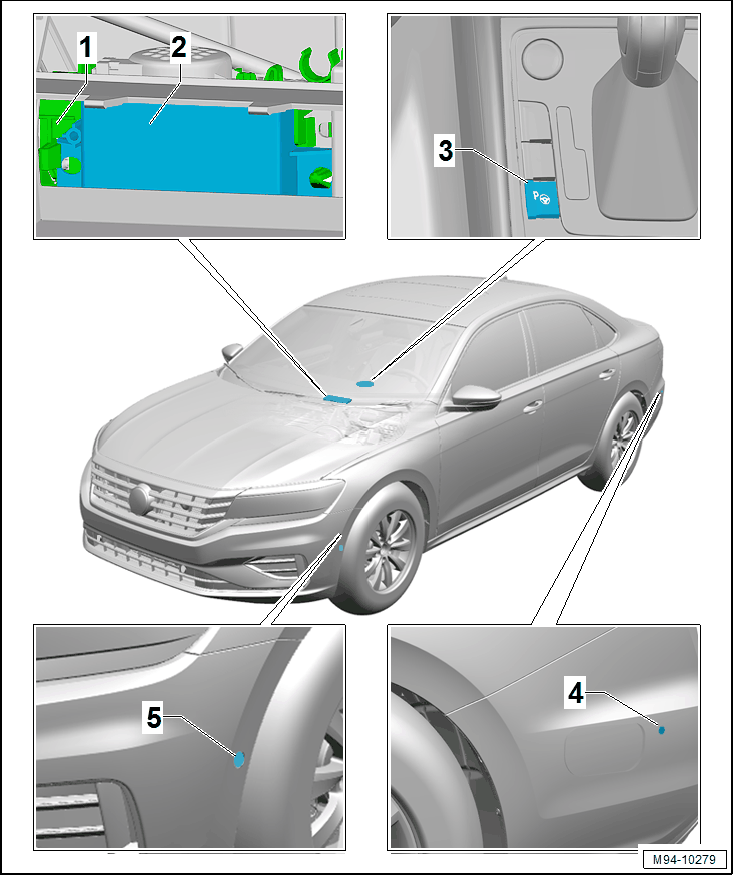

Overview - Parallel Parking Assist

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bracket
- For the Parking Aid Control Module -J446-
- Removing and installing
Parallel Parking Assistance Control Module -J791-
- Removing and Installing. Refer to CONTROL MODULE, REMOVING AND INSTALLING .
Parallel Parking Assistance Button -E581-
- Removing and installing
Rear Parallel Parking Assist Sensors
- Left Rear Parallel Parking Assistance Sensor -G716-
- Right Rear Parallel Parking Assistance Sensor -G717-
- Removing and Installing. Refer to REAR SENSOR, REMOVING AND INSTALLING .
Parallel Parking Assist Front Sensor
- Left Front Parallel Parking Assistance Sensor -G568-
- Right Front Parallel Parking Assistance Sensor -G569-
- Removing and Installing. Refer to FRONT SENSOR, REMOVING AND INSTALLING .
