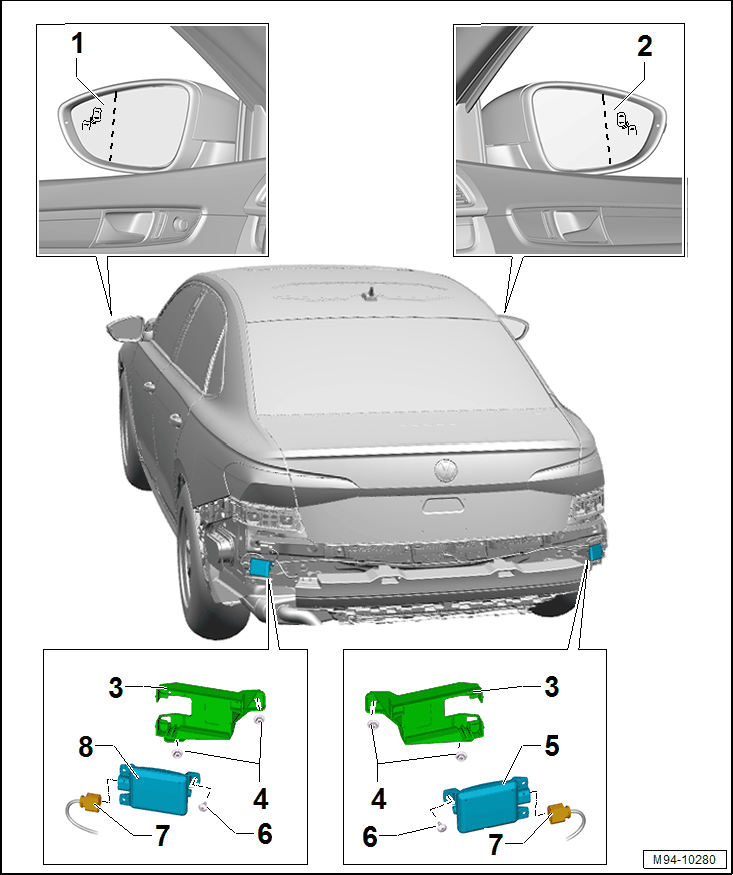

Overview - Blind Spot Detection
- Blind Spot Detection Warning Lamp in Left Exterior Mirror -K303-
- Removing and Installing. Refer to BLIND SPOT DETECTION WARNING LAMP IN LEFT/RIGHT EXTERIOR MIRROR -K303- / -K304-, REMOVING AND INSTALLING .
- Blind Spot Detection Warning Lamp in Right Exterior Mirror -K304-
- Removing and Installing. Refer to BLIND SPOT DETECTION WARNING LAMP IN LEFT/RIGHT EXTERIOR MIRROR -K303- / -K304-, REMOVING AND INSTALLING .
- Blind Spot Detection Control Module 1/Module 2 -J1086- / -J1087-
- Removing and Installing. Refer to Blind Spot Detection Control Module -J1086- /Blind Spot Detection Control Module 2 -J1087-, REMOVING AND INSTALLING .
- Nut
- 4 Nm
- Blind Spot Detection Control Module -J1086-
- Master
- Removing and Installing. Refer to Blind Spot Detection Control Module -J1086- /Blind Spot Detection Control Module 2 -J1087-, REMOVING AND INSTALLING .
- Calibrating. Refer to BLIND SPOT DETECTION, CALIBRATING .
- Bolt
- 2 Nm
- Connector
- Blind Spot Detection Control Module 2 -J1087-
- Slave
- Removing and Installing. Refer to Blind Spot Detection Control Module -J1086- /Blind Spot Detection Control Module 2 -J1087-, REMOVING AND INSTALLING .
- Calibrating. Refer to BLIND SPOT DETECTION, CALIBRATING .
