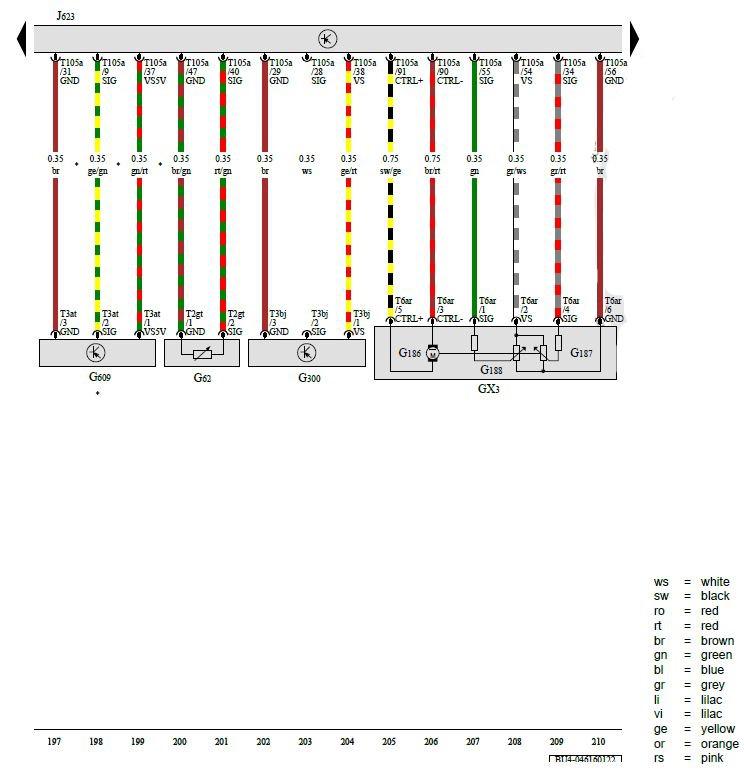

Throttle Valve Control Module, Engine Coolant Temperature Sensor, Camshaft Position Sensor 3, Secondary Air Injection Sensor 1, Engine/Motor Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

GX3

Throttle Valve Control Module

G62

Engine Coolant Temperature Sensor

G186

EPC Throttle Drive

G187

EPC Throttle Drive Angle Sensor 1

G188

EPC Throttle Drive Angle Sensor 2

G300

Camshaft Position Sensor 3

G609

Secondary Air Injection Sensor 1

J623

Engine/Motor Control Module

T2gt

2-Pin Connector, Black

T3at

3-Pin Connector, Black

T3bj

3-Pin Connector, Black

T6ar

6-Pin Connector, Black

T105a

105-Pin Connector, Black

*

For Vehicles with Secondary Air Injection Pump
