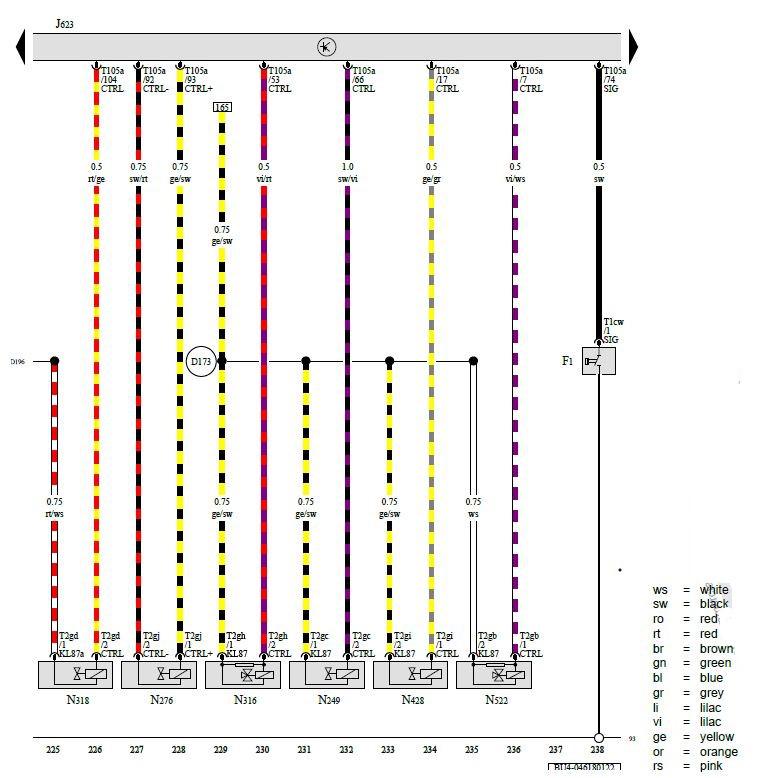

Oil Pressure Switch, Engine/Motor Control Module, Turbocharger RECIRCULATION Valve, Fuel Pressure Regulator Valve, Intake Manifold Runner Control Valve, Exhaust Camshaft Adjustment Valve 1, Oil Pressure Regulation Valve, Piston Cooling Nozzle Control Valve

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Oil Pressure Switch

J623

Engine/Motor Control Module

N249

Turbocharger Recirculation Valve

N276

Fuel Pressure Regulator Valve

N316

Intake Manifold Runner Control Valve

N318

Exhaust Camshaft Adjustment Valve 1

N428

Oil Pressure Regulation Valve

N522

Piston Cooling Nozzle Control Valve

T1cw

1-Pin Connector, Blue

T2gb

2-Pin Connector, Black

T2gc

2-Pin Connector, Black

T2gd

2-Pin Connector, Black

T2gh

2-Pin Connector, Black

T2gi

2-Pin Connector, Black

T2gj

2-Pin Connector, Black

T105a

105-Pin Connector, Black

D173

Connection 87 (in Engine Pre-Wiring Harness)

D196

Connection 87A (in Engine Pre-Wiring Harness) 2

Ground Supply via the Housing
