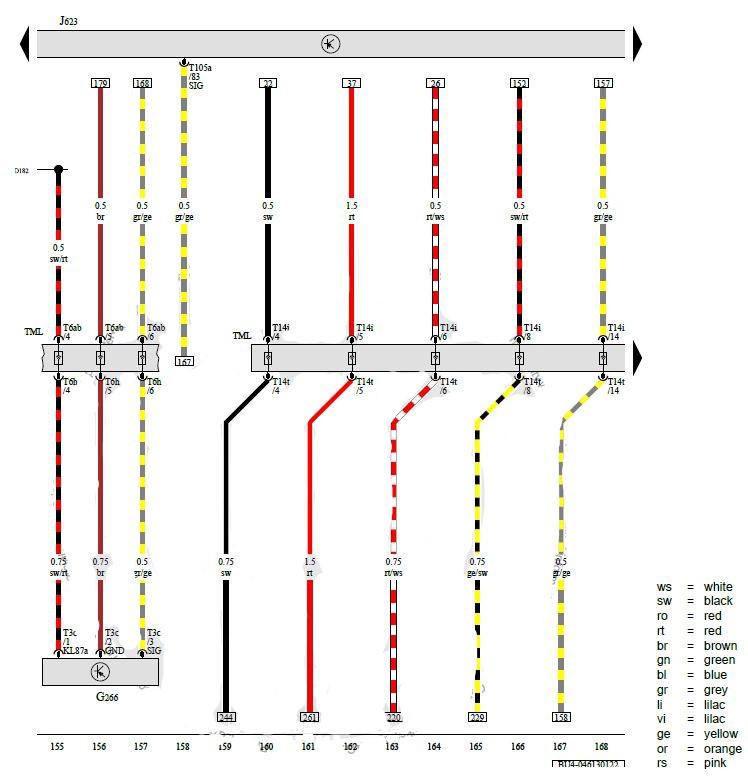

Oil Level Thermal Sensor, Engine/Motor Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G266

Oil Level Thermal Sensor

J623

Engine/Motor Control Module

T3c

3-Pin Connector, Black

T6ab

6-Pin Connector, Black

T6h

6-Pin Connector, Black

T14i

14-Pin Connector, Gray

T14t

14-Pin Connector, Gray

T105a

105-Pin Connector, Black

TML

Coupling Point in Engine/Motor Compartment, Left

D182

Connection 3 (87A) (in Engine/Motor Compartment Wiring Harness)
