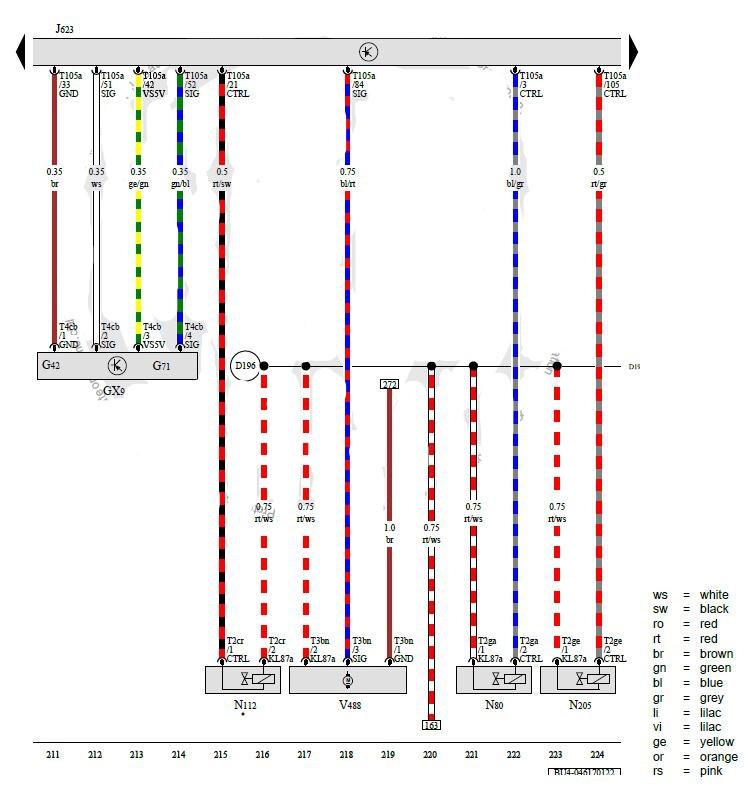

Intake Manifold Sensor, Engine/Motor Control Module, EVAP Canister Purge Regulator Valve 1, Secondary Air Injection Solenoid Valve, Camshaft Adjustment Valve 1, Heater Support Pump

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

GX9

Intake Manifold Sensor

G42

Intake Air Temperature Sensor

G71

Manifold Absolute Pressure Sensor

J623

Engine/Motor Control Module

N80

EVAP Canister Purge Regulator Valve 1

N112

Secondary Air Injection Solenoid Valve

N205

Camshaft Adjustment Valve 1

T2cr

2-Pin Connector, Black

T2ga

2-Pin Connector, Black

T2ge

2-Pin Connector, Black

T3bn

3-Pin Connector, Black

T4cb

4-Pin Connector, Black

T105a

105-Pin Connector, Black

V488

Heater Support Pump

D196

Connection 87A (in Engine Pre-Wiring Harness) 2

*

For Vehicles with Secondary Air Injection Pump
