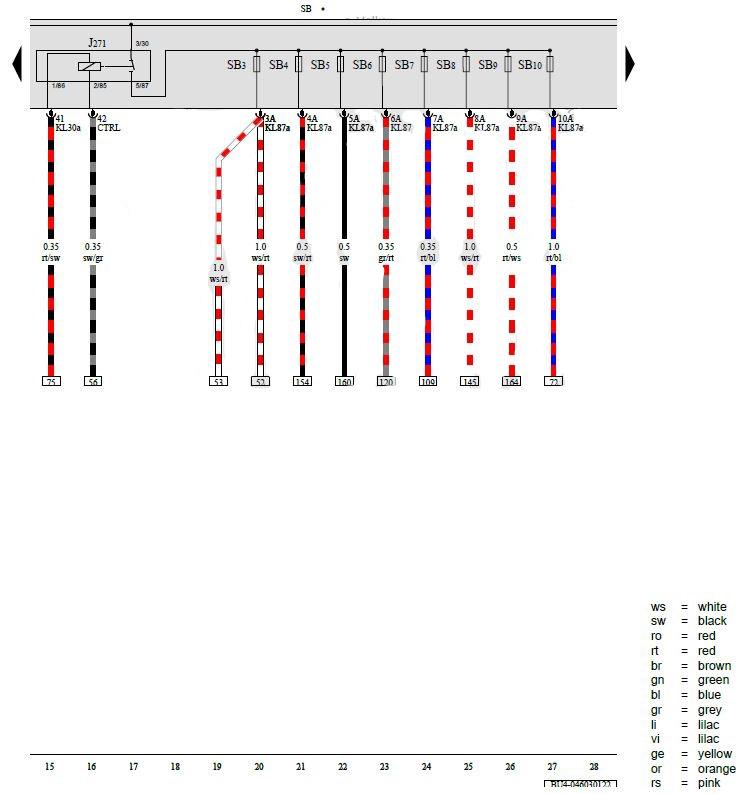

Fuse Panel B

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J271

Motronic Engine Control Module Power Supply Relay

SB

Fuse Panel B

SB3

Fuse 3 (On Fuse Panel B)

SB4

Fuse 4 (On Fuse Panel B)

SB5

Fuse 5 (On Fuse Panel B)

SB6

Fuse 6 (On Fuse Panel B)

SB7

Fuse 7 (On Fuse Panel B)

SB8

Fuse 8 (On Fuse Panel B)

SB9

Fuse 9 (On Fuse Panel B)

SB10

Fuse 10 (On Fuse Panel B)

*

Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment
