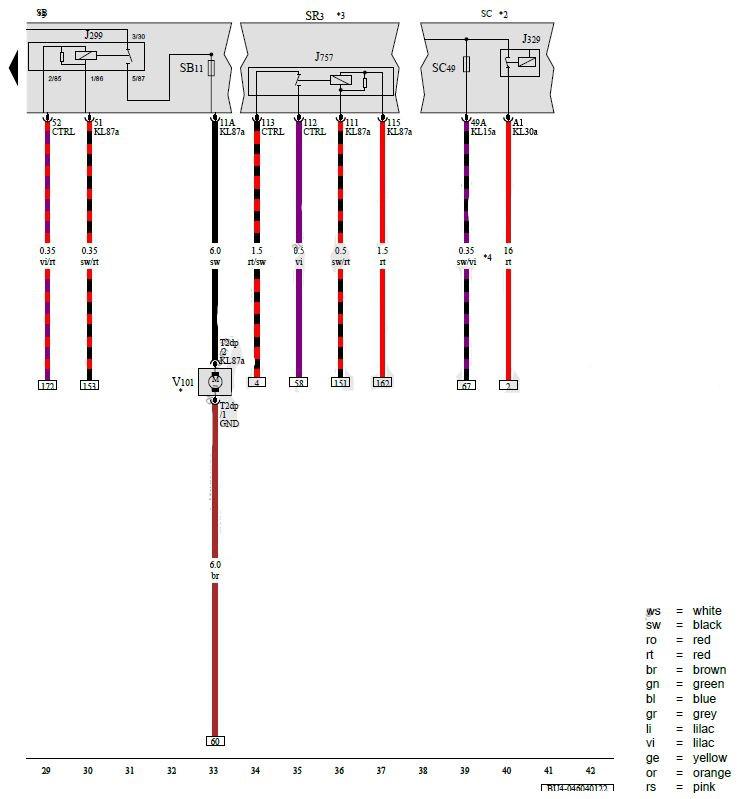

Fuse Panel B, Fuse Panel C, Relay And Fuse Panel 3, Secondary Air Injection Pump Motor
J299
Secondary Air Injection Pump Relay
J329
Terminal 15 Power Supply Relay
J757
Engine Component Power Supply Relay
SB
Fuse Panel B
SB11
Fuse 11 (On Fuse Panel B)
SC
Fuse Panel C
SR3
Relay and Fuse Panel 3, In the E-Box
SC49
Fuse 49 (On Fuse Panel C)
T2dp
2-Pin Connector, Black
V101
Secondary Air Injection Pump Motor
*
Depending on Equipment
*2
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*3
Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment
*4
For Vehicles Without Engine Remote Start
