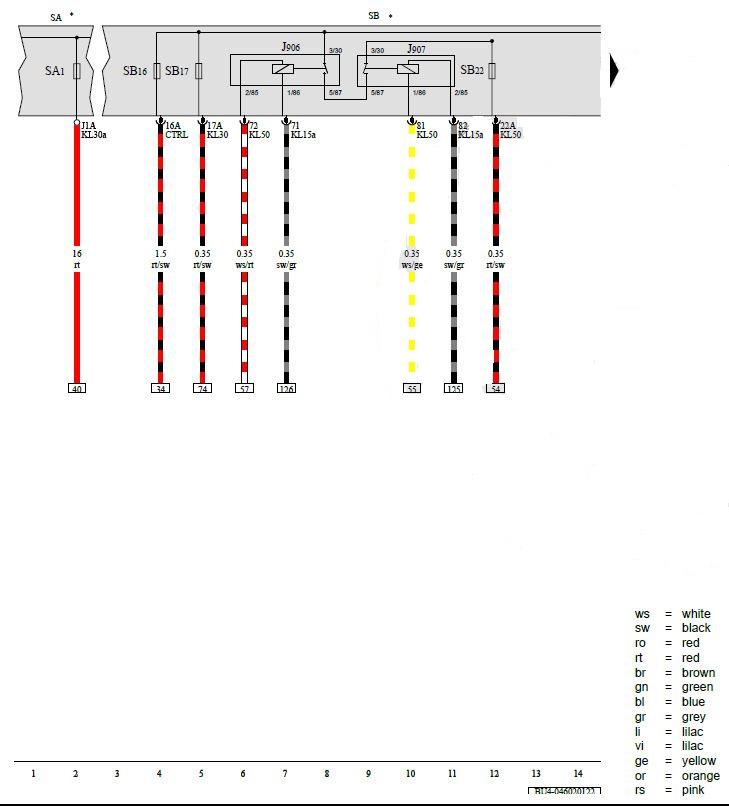

Fuse Panel A, Fuse Panel B

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J906

Starter Relay 1

J907

Starter Relay 2

SA

Fuse Panel A

SA1

Fuse 1 (On Fuse Panel A)

SB

Fuse Panel B

SB16

Fuse 16 (On Fuse Panel B)

SB17

Fuse 17 (On Fuse Panel B)

SB22

Fuse 22 (On Fuse Panel B)

*

Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment
