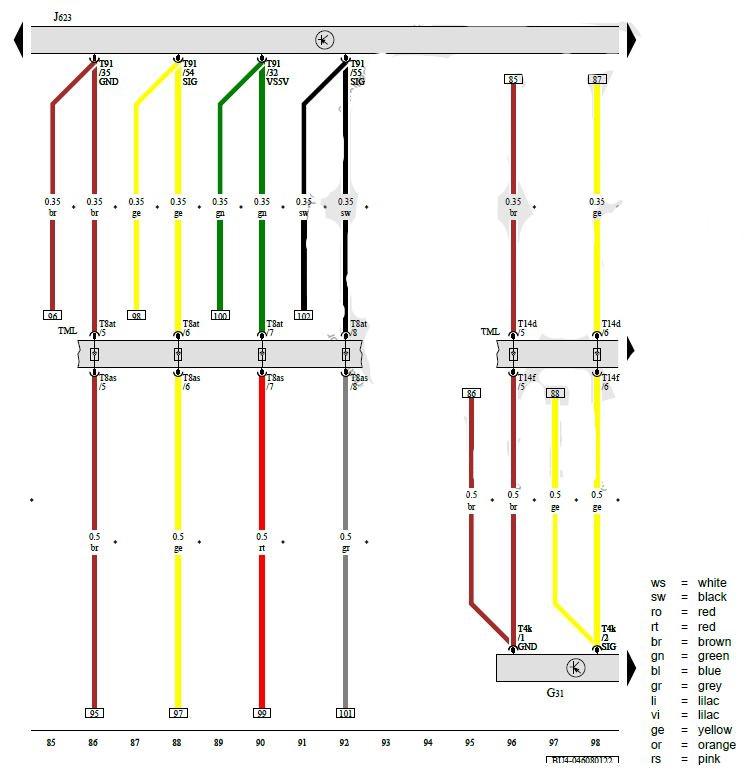

Charge Air Pressure Sensor, Engine/Motor Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G31

Charge Air Pressure Sensor

J623

Engine/Motor Control Module

T4k

4-Pin Connector

T8as

8-Pin Connector, Black

T8at

8-Pin Connector, Black

T14d

14-Pin Connector, Black

T14f

14-Pin Connector, Black

T91

91-Pin Connector, Black

TML

Coupling Point in Engine/Motor Compartment, Left

*

Depending on Equipment
