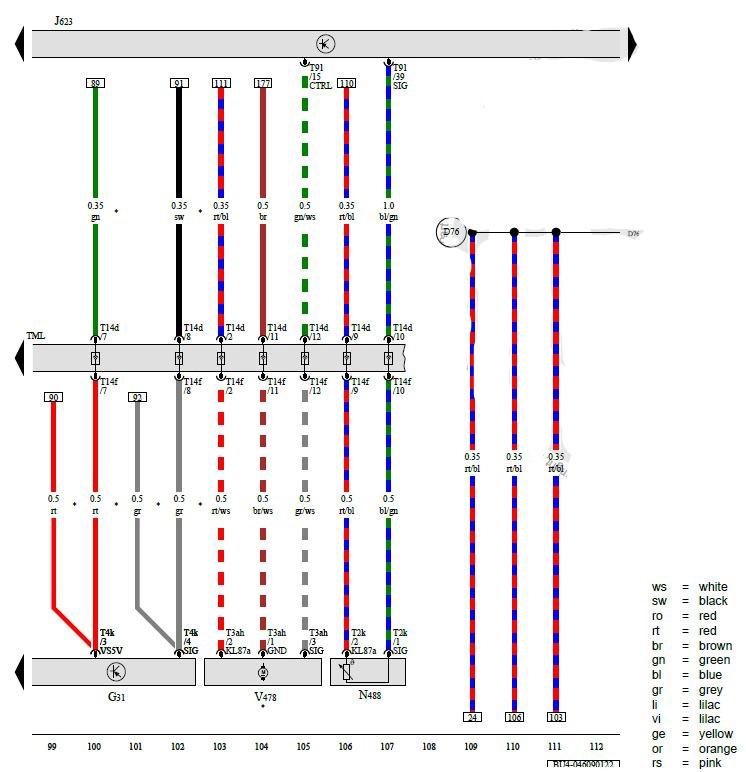

Charge Air Pressure Sensor, Engine/Motor Control Module, Transmission Coolant Valve, Transmission Fluid Cooling Pump

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G31

Charge Air Pressure Sensor

J623

Engine/Motor Control Module

N488

Transmission Coolant Valve

T2k

2-Pin Connector, Black

T3ah

3-Pin Connector

T4k

4-Pin Connector

T14d

14-Pin Connector, Black

T14f

14-Pin Connector, Black

T91

91-Pin Connector, Black

TML

Coupling Point in Engine/Motor Compartment, Left

V478

Transmission Fluid Cooling Pump

D76

Recirculation Pump Connection (in Engine/Motor Compartment Wiring Harness)

*

Depending on Equipment
