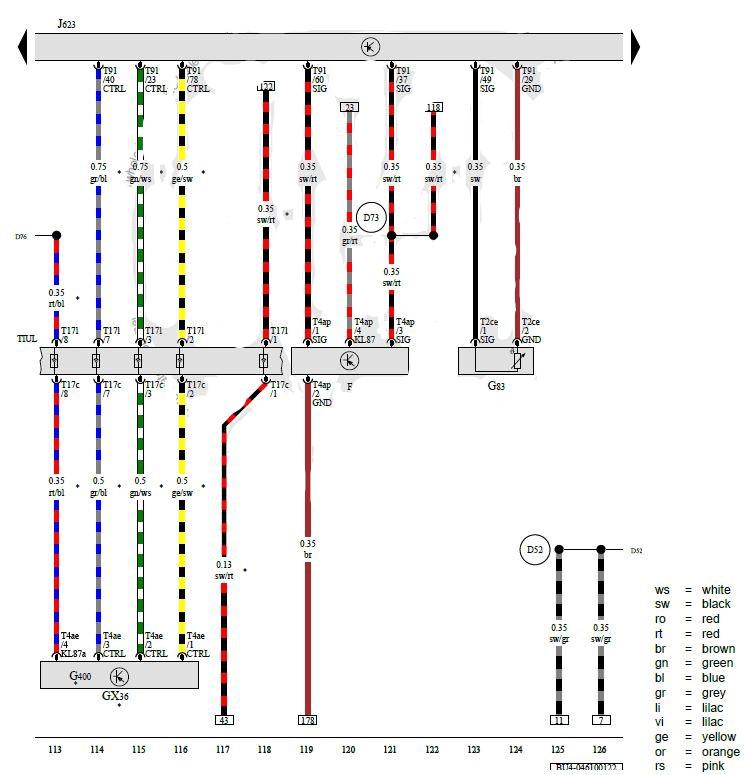

Brake Lamp Switch, Fuel Tank Leak Detection Module, Engine Coolant Temperature Sensor On Radiator Outlet, Engine/Motor Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

F

Brake Lamp Switch

GX36

Fuel Tank Leak Detection Module

G83

Engine Coolant Temperature Sensor on Radiator Outlet

G400

Fuel Tank Pressure Sensor

J623

Engine/Motor Control Module

T2ce

2-Pin Connector, Black

T4ae

4-Pin Connector, Black

T4ap

4-Pin Connector, Black

T17c

17-Pin Connector, Red

T17l

17-Pin Connector, Red

T91

91-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

D52

Positive Connection (15a) (in Engine/Motor Compartment Wiring Harness)

D73

Positive Connection (54) (in Engine/Motor Compartment Wiring Harness)

D76

Recirculation Pump Connection (in Engine/Motor Compartment Wiring Harness)

*

Depending on Equipment
