Rear Lid, Adjusting: Procedure: Notes
WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
To adjust or check the gap dimensions, use the :3371 . Refer to the appropriate information BODY, REAR or BODY, REAR .
-- If equipped, remove the left and right hinge cover. Refer to HINGES, REMOVING AND INSTALLING .

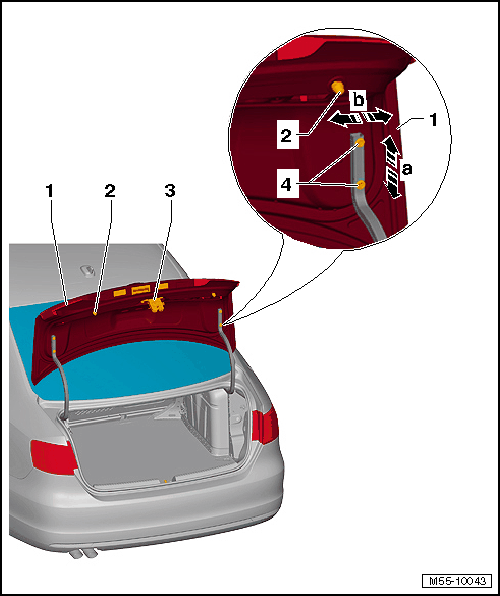

-- By loosening the bolts -4-, the rear lid -1- can be adjusted in the oversized holes on the hinge -a arrows- and -b arrows-.
-- After adjusting, apply a corrosion protection to the hinge and bolts.
-- Adjust the adjusting buffer -2- by turning it.
-- Adjust the rear lid -1- at the catch. Refer to Striker, Adjusting below.
