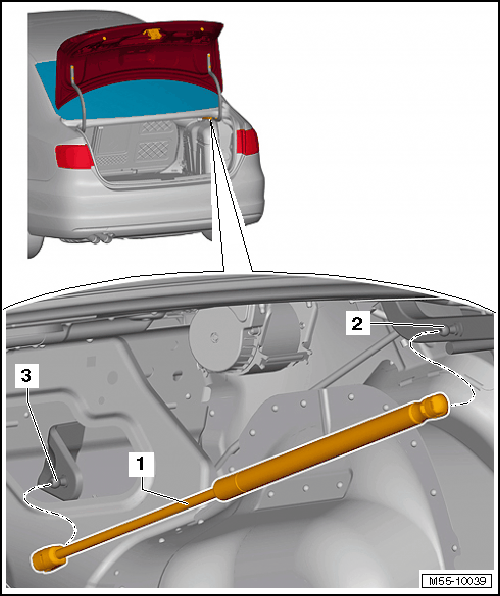

Overview - Gas-Filled Strut
WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Gas-Filled Strut
- Removing and Installing. Refer to GAS-FILLED STRUT, REMOVING AND INSTALLING .
- Venting. Refer to GAS-FILLED STRUT, VENTING .
- Ball Stud
- Only on the right hinge
- Cannot be separated from the hinge
- Retaining Bracket with Ball Stud
- On the rear panel
- Cannot be separated from the rear panel
