Hinges, Removing And Installing: Removing

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

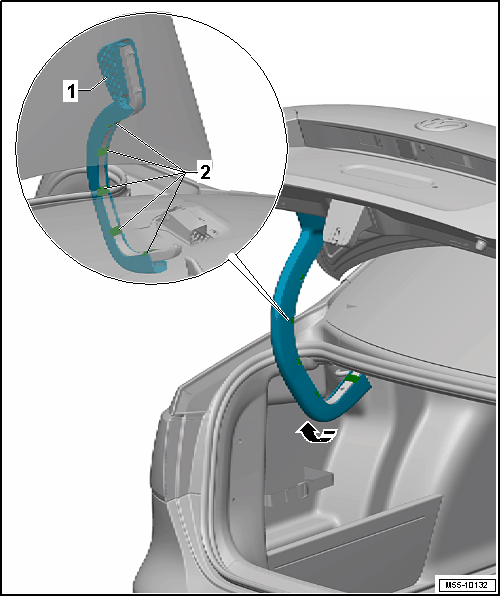

-- If equipped, remove the left and right cover -1- from the hinge.

-- To do so, release the locking mechanisms -2- on the cover -1-.

-- Remove the cover -1- in the direction of the -arrow- from the hinge.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

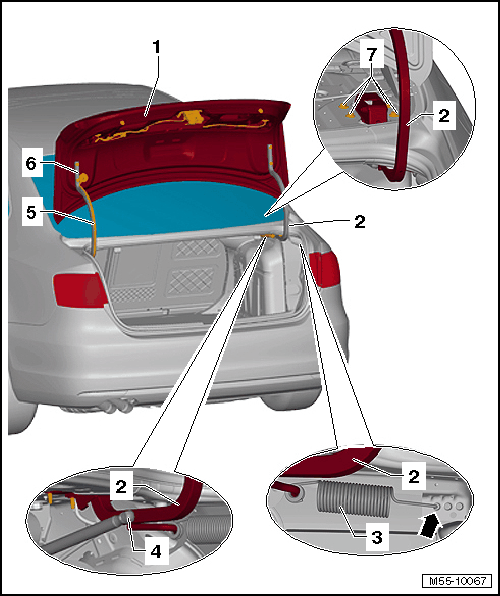

-- Remove the rear lid -1-. Refer to REAR LID, REMOVING AND INSTALLING .

If removing the left hinge -6- :

-- Remove the wire -5- from the left hinge -6-.

If removing the right hinge -2- :

-- Remove the gas-filled strut -4- from the ball stud on the right hinge -2-. Refer to GAS-FILLED STRUT, REMOVING AND INSTALLING .

Continuation for both hinges:

-- Disengage the spring -3- -arrow- and remove it from the hinge.

-- Remove the rear shelf. Refer to LUGGAGE COMPARTMENT TRIM PANELS .

-- Remove the bolts -7-.

-- Remove the left hinge -2- or the right hinge -6-.
