Support Rod, Removing And Installing: Removing

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

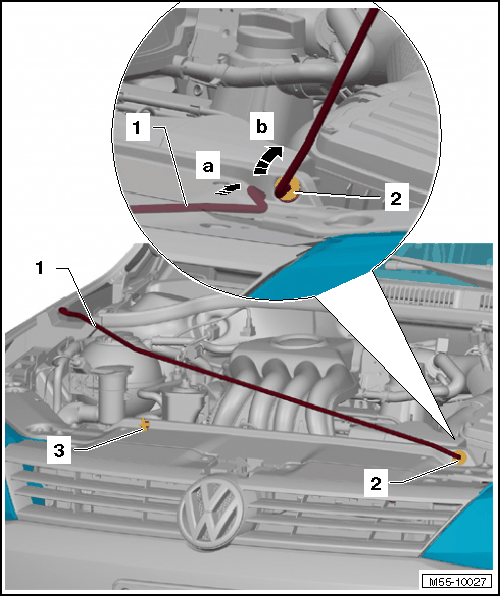

GWWM55-10027Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Support the hood.

-- Move the support rod -1- forward.

-- Remove the support rod -1- from the rubber grommet -2-.
