Latch, Removing And Installing: Removing

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the hood.

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Disconnect the release cable -2- at the cable coupling. Refer to RELEASE CABLE, REMOVING AND INSTALLING .

-- If equipped, disconnect the connector for the Engine Hood Contact Switch -F266-.

NOTE:

The connector is secured on the upper left side of the lock carrier.

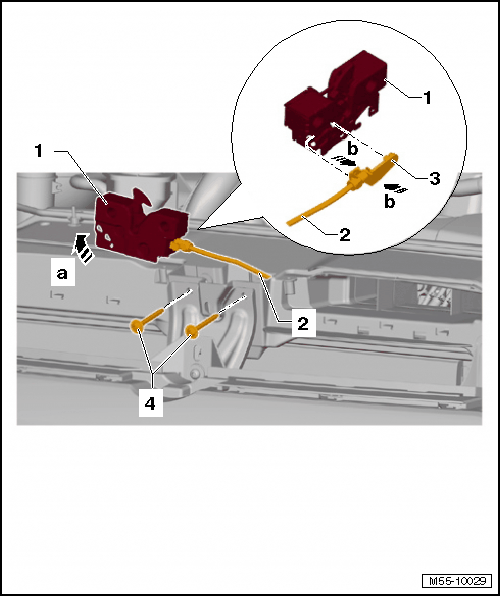

-- Remove the bolts -4- from the lock carrier and remove the latch -1- upward -arrow a-.

-- If equipped, guide the Engine Hood Contact Switch -F266- wire out of the lock carrier.

-- Press the tabs on the bracket together -b arrows- and remove the bracket -3-.

-- After loosening the catch on the bracket, remove the cable -2- from the latch -1-.

NOTE:

The Engine Hood Contact Switch -F266- is integrated into the hood latch and cannot be replaced separately.
