Hood, Removing And Installing: Removing
WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

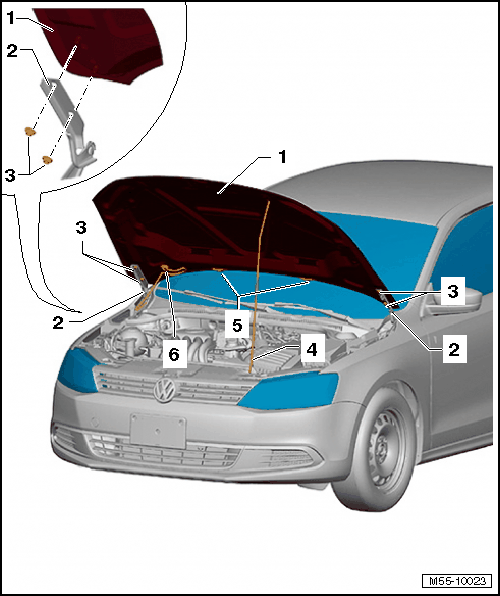

-- Remove the spray nozzles -5-. Refer to WINDSHIELD WASHER SYSTEM .
-- Unclip the line -6- from the hood -1-.
-- Remove the line -6- from the hood opening -1-.
-- Loosen the left and right nuts -3- on the hinge -2- (do not remove them).
A second technician is required for the rest of the removal procedure.
-- Remove the support rod -4- from the hood.
-- Remove the nuts -3- and the hood -1- from the hinges -2-.
