Special Tools

WARNING: This page is about a different car, the 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Measuring container, fuel-resistant
Counterhold - Camshaft Gear :T10051

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Puller - Unit Injector :T10055

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
O-ring Assembly Sleeve :T10377

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Diesel Engine Tool Set - 17mm - Socket Wrench :T10395/3 or Diesel Engine Tool Set - 17mm - Socket Wrench :T10395/11

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

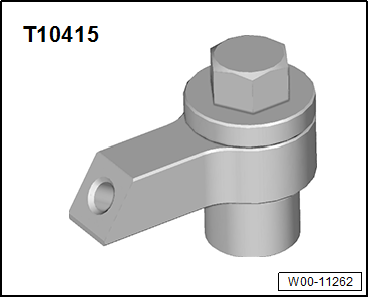

Puller - Injector : T10415

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

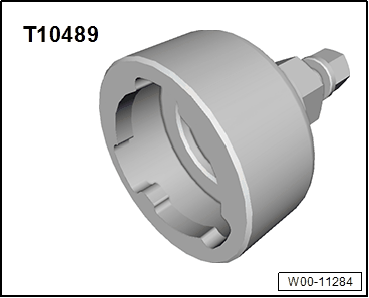

Puller : T10489

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

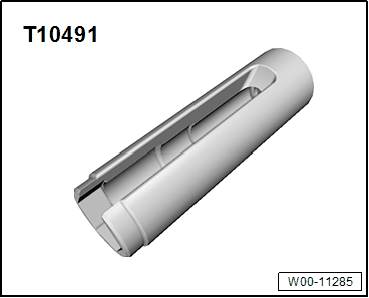

Oxygen Sensor Socket - 22mm :T10491

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Locking Pin :T10492

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Socket Bit XZN 10 : T10501

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Union Nut Socket :T40055

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Socket - 27mm :T40218

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque Wrench 1331 5-50Nm :VAG1331

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Tool insert AF 17 :VAG1331/6

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque Wrench 1332 40-200Nm :VAG1332

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Hand Vacuum Pump :VAS6213

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Hose Clip Pliers :VAS6362

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Return Flow Meter :VAS6684

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Mini Torque Wrench :VAS6854

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Hose Clamps - Up To 25 mm :3094

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Ring Wrench 7-Piece Set :3337

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tools Not Illustrated

Axial Grinder :VAS6682

Vehicle Diagnostic Tester
