Open Fuel Injectors, Checking: Procedure

WARNING: This page is about a different car, the 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

-- Erase the DTC memory entry with the Vehicle Diagnostic Tester.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Clean all connections, for example with commercially available detergent, before removing.

NOTE:

Maintain clean working conditions. Contamination must not enter the fuel system.

Check one cylinder after another.

-- Dry all cleaned components.

Begin with the cylinder 1.

-- Remove the noise insulation.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

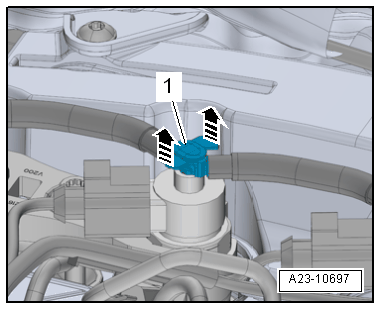

-- Disconnect the return line connections on the fuel injectors, to do so push the releases upward in direction of -arrows-.

-- Connect the clean adapter that has been cleaned out using compressed air to the return connection on the fuel injector that is being checked.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

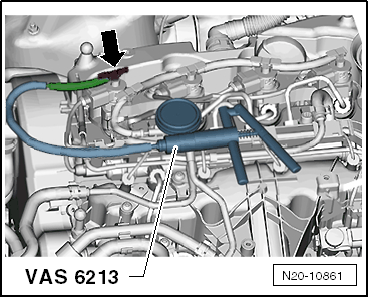

-- A vacuum pressure of -500 mbar (-7.25 psi) is applied using the :VAS6213 .

Fuel injectors are OK when the pressure remains constant for about 30 seconds.

If the fuel injectors are faulty, the pressure will drop to 0 bar again within 2 to 3 seconds.

Repeat the test if necessary. Watch the :VAS6213 for a loss of pressure.

-- Replace any faulty fuel injectors. Refer to FUEL INJECTORS, REMOVING AND INSTALLING .

-- Install the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
