Rear Lid, Removing And Installing: Removing
WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear lid trim panel. Refer to LUGGAGE COMPARTMENT TRIM PANELS .
-- If equipped, remove the left and right hinge cover. Refer to HINGES, REMOVING AND INSTALLING .
-- Disconnect the connectors from any electrical components.

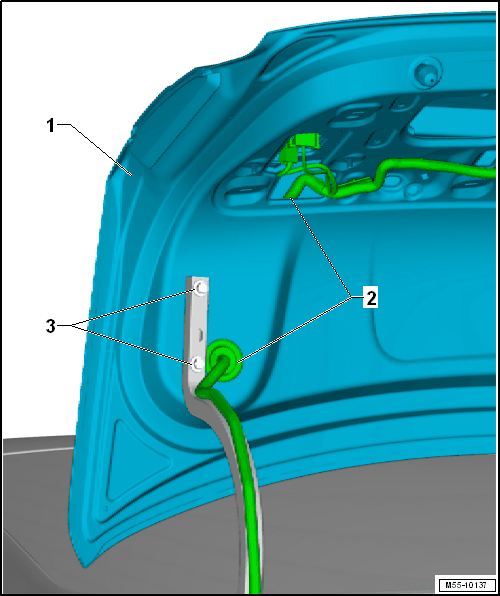

-- Guide the left wires -2- (right, if equipped) with the rubber grommet out of the rear lid -1-.
-- Loosen, but do not remove, the bolts -3- on the left and right hinges.
A second technician is required for the rest of the removal procedure.
-- Remove the bolts -3- and the rear lid -1-.
