Latch, Removing And Installing: Installing

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install in reverse order of removal and note the following:

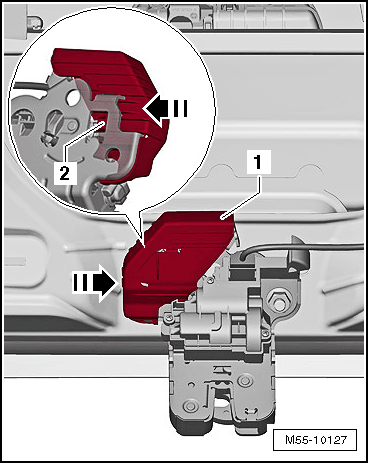

-- If equipped, install the cap -1- in the direction of the -arrow-. The locking tab -2- must audibly engage while doing so.

Perform a function test on the unlocking components before closing the rear lid.
