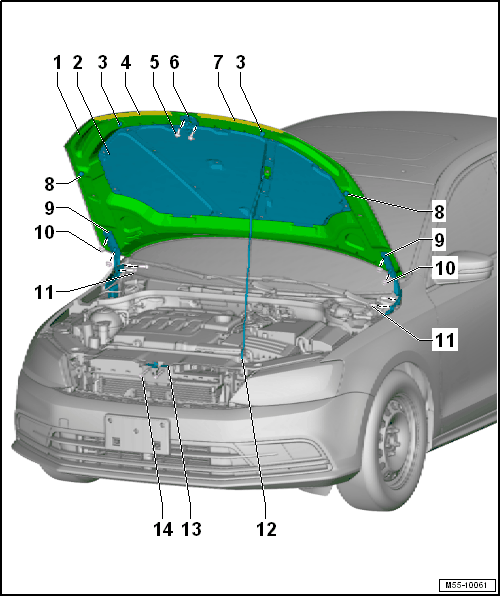

Overview - Hood
WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Hood
- Removing and Installing. Refer to HOOD, REMOVING AND INSTALLING .
- Adjusting. Refer to HOOD, ADJUSTING .
- Insulation
- Removing and Installing. Refer to INSULATION, REMOVING AND INSTALLING .
- Rubber Buffer
- Right and left
- Seal
- Right
- Removing and Installing. Refer to SEALS, REMOVING AND INSTALLING .
- Bolts
- 10 Nm
- Quantity: 2
- Striker
- Removing and Installing. Refer to STRIKER, REMOVING AND INSTALLING .
- Adjusting. Refer to Striker, Adjusting .
- Seal
- Left
- Removing and Installing. Refer to SEALS, REMOVING AND INSTALLING .
- Adjusting Buffer
- Right and left
- Hinge
- Removing and Installing. Refer to HINGES, REMOVING AND INSTALLING .
- Adjusting. Refer to HOOD, ADJUSTING .
- Nuts
- 22 Nm
- Quantity: 2 on each side
- Bolts
- 22 Nm
- Quantity: 2 on each side
- Support Rod
- Removing and Installing. Refer to SUPPORT ROD, REMOVING AND INSTALLING .
- Latch
- Removing and Installing. Refer to LATCH, REMOVING AND INSTALLING .
- Adjusting. Refer to Latch, Adjusting .
- Bolts
- 12 Nm
- Quantity: 2
