Latch, Removing And Installing: Installing
WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal and note the following:

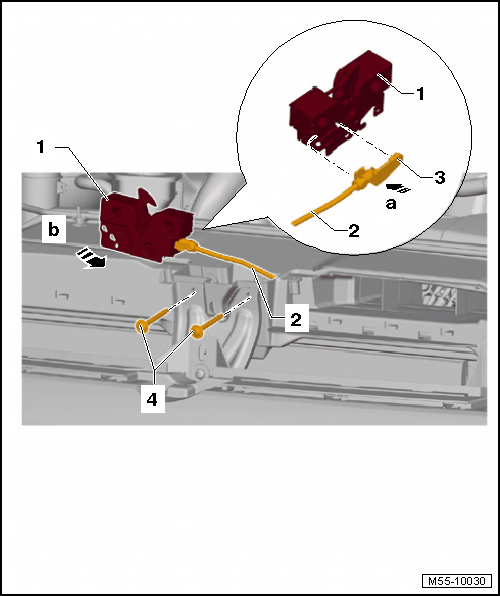

-- Attach the cable -2- to the latch -1- and clip the bracket -3- into the latch -1- -arrow a-.
-- If equipped, thread the Engine Hood Contact Switch -F266- wire into the lock carrier.
-- Guide the latch -1- into the lock carrier -arrow b-.
-- Install the bolts -4-.
-- If equipped, connect the connector for the Engine Hood Contact Switch -F266-.
-- Install the release cable -2- in the cable coupling. Refer to RELEASE CABLE, REMOVING AND INSTALLING .
-- Adjust the latch. Refer to Latch, Adjusting .
-- Install the radiator grille. Refer to RADIATOR GRILLE, REMOVING AND INSTALLING .
- Before closing the hood, make sure the release lever and the cable are working correctly.
