Overview - Fuel Filler Door Unit
WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

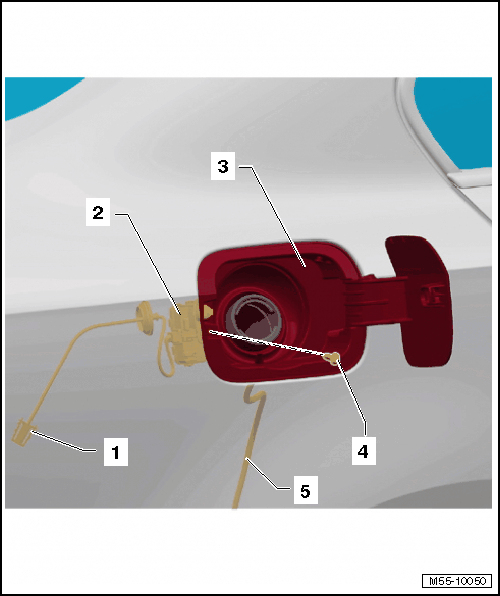

- Connector
- For Fuel Filler Door Lock Motor -V155-
- Fuel Filler Door Lock Motor -V155-
- Removing and Installing. Refer to Fuel Filler Door Lock Motor -V155-, REMOVING AND INSTALLING .
- There are different versions.
- Fuel Filler Door Unit
- Removing and Installing. Refer to FUEL FILLER DOOR UNIT, REMOVING AND INSTALLING .
- There are different versions.
- Bolt
- 1.5 Nm
- Water Drain Hose
- Routed between the wheel housing and the wheel housing liner
