Coolant Pump, Removing And Installing: Removing
WARNING: This page is about a different car, the 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
-- Drain the coolant. Refer to DRAIN THE COOLANT .
-- Remove the toothed belt from the camshaft. Refer to TOOTHED BELT, REMOVING FROM CAMSHAFT .

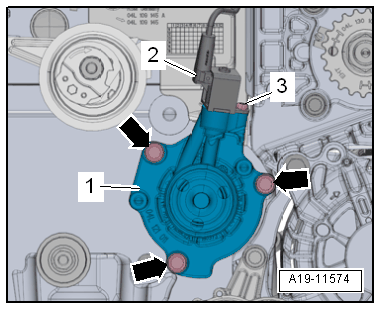

-- Remove the bolt -3- and the Cylinder Head Coolant Valve -N489- -2-.
-- Remove the bolts -arrows- and the coolant pump -1-.
