Vibration Damper Seal, Replacing: Installing

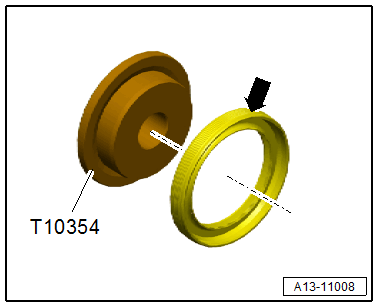

Fig 1: Identifying Crankshaft Seal Installer T10354

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Clean the contact and sealing surface.

-- Push the seal -arrow- on the : T10354  .

• The closed side of the seal points to the : T10354  .

-- Push the seal -arrow- with the : T10354  on the : T10531/2  and place on the lower timing chain cover.

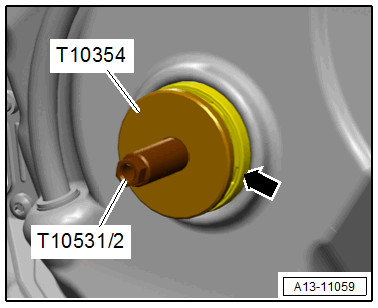

Fig 2: Identifying Crankshaft Seal Installer T10354 And Tensioning Pins T10531/2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Additionally attach the : T10375  and tighten the : T10531/4  .

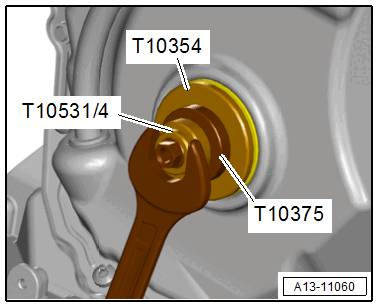

Fig 3: Driving Seal In Using Seal Installer - Crankshaft T10354

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Drive the seal in all the way using the : T10354  .

Further assembly is performed in the reverse order of the removal. Note the following:

-- Install the vibration damper. Refer to VIBRATION DAMPER, REMOVING AND INSTALLING .
