Upper Timing Chain Cover, Removing And Installing: Removing

Fig 1: Identifying Coolant Reservoir Cap

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• The engine is cold.

-- Briefly open the coolant expansion tank cap -arrow- to reduce the residual pressure in the coolant system.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Loosen the hose clamps -1-, remove the coolant hose and push to the right side.

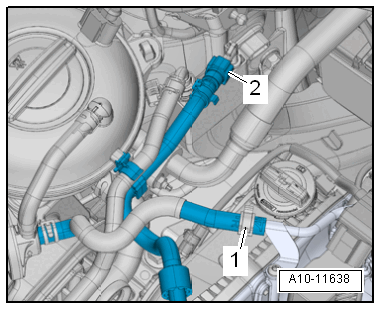

Fig 2: Identifying Hose Clamps And EVAP Canister Hose

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the release button on the EVAP canister hose -2-, remove the hose and free it up.

-- Remove the Camshaft Adjustment Valve 1 -N205- /Exhaust Camshaft Adjustment Valve 1 -N318-. Refer to Camshaft Adjustment Valve 1 -N205- AND Exhaust Camshaft Adjustment Valve 1 -N318-, REMOVING AND INSTALLING .

-- Remove the bolt -1-.

Fig 3: Identifying Oil Dipstick Guide Tube

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the oil dipstick tube from the upper timing chain cover in direction of -arrow-.

-- Remove the bolts -1 through 6- and the timing chain upper cover.

Fig 4: Upper Timing Chain Cover Loosening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- If necessary, remove the bolts -3 and 5-.
