Vacuum Pump, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

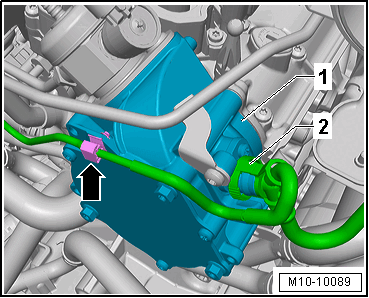

-- Unclip the vacuum line -2- from the bracket -arrow-.

Fig 1: Identifying Vacuum Line

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the vacuum hose -2-.

-- Remove the bolts -1, 2 and 3- and carefully move the coolant line slightly to the side.

Fig 2: Identifying Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Risk of destroying the coolant pipes through deformation.

Never change the coolant pipe bend shape.

-- Remove the high pressure pump with the >>roller tappet<<. Refer to HIGH PRESSURE PUMP, REMOVING AND INSTALLING .

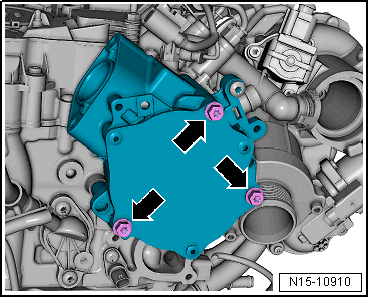

-- Remove the bolts -arrows- and remove the vacuum pump.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Do not disassemble the vacuum pump.
