Crankshaft Needle Bearing, Replacing

Only for Vehicles Equipped with a DSG ^®  Transmission

Special tools and workshop equipment required

• Counter-support, for example Counter Support: VAS251621
• Internal puller, for example Internal Puller: VAS251605
• Bearing Installer - Bearing Press Piece: VW207C

Conditions:

Fig 1: Identifying Needle Bearing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Always replace the needle bearing -arrow- after the engine and transmission are separated.
• The front edges of the internal puller must not be broken off.

Needle Bearing, Removing

Fig 2: Identifying Internal Puller

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

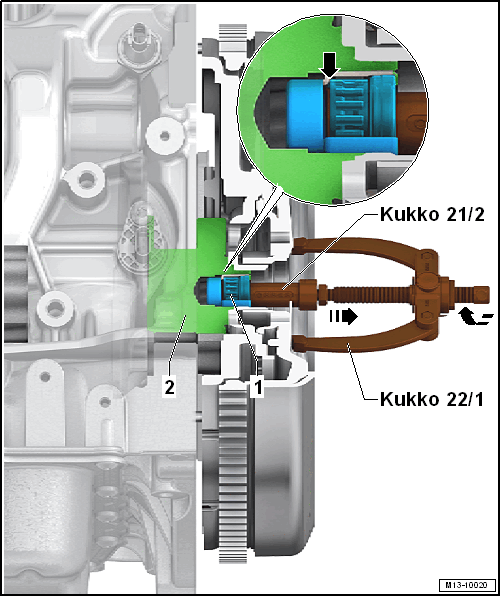

-- Remove the needle bearing -1- from the crankshaft -2- using a commercially available internal puller for example the : VAS251605  and counter support : VAS251621  .

-- The internal puller must be positioned behind the needle rim -arrow-.

Installing

Fig 3: Identifying Bearing Press Piece

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Clean the bearing seat in the crankshaft and thinly coat with grease.

-- Drive the needle bearing into the crankshaft up to the installation depth using the : VW207C  .

Installation Depth Dimension a = 2.0 mm

Fig 4: Identifying Installation Depth

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
