Balance Shaft Gasket, Replacing, Intake Side

Special tools and workshop equipment required

• Seal Installer, Intermediate Shaft: T10356/1

Procedure

Fig 1: Identifying Drive Wheel And Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the coolant pump toothed belt. Refer to COOLANT PUMP TOOTHED BELT, REMOVING AND INSTALLING .

-- Remove the screw -2-.

-- Remove the drive wheel -1- for the coolant pump toothed belt.

-- Firmly press a screwdriver -1- on the seal surface -2- in direction of -arrow B-.

Fig 2: Identifying Pry Out Seal Using A Screwdriver

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pry out the seal in direction of -arrow A-.

-- Clean the contact and sealing surface.

-- Coat the sealing surface of the balance shaft -2- with transmission fluid.

Fig 3: Balance Shaft And Sealing Surface

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

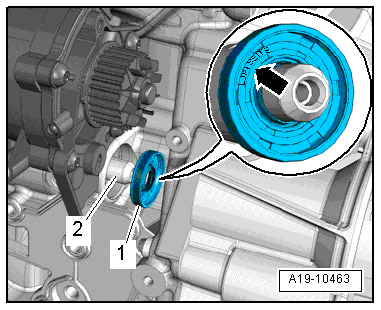

-- Push the shaft seal -1- onto the balance shaft.

• "Luftseite" or ("Outside") -arrow- must be readable from the outside.

NOTE:

The drive wheel bolt -2- has left-hand thread.

Fig 4: Identifying Seal Installer Intermediate Shaft

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Mount the : T10353/1  on the shaft seal -1- and then press it all the way into the cylinder block with the bolt -2-. While doing so, do not to tilt the shaft seal.

-- Install the coolant pump toothed belt. Refer to COOLANT PUMP TOOTHED BELT, REMOVING AND INSTALLING .

-- Fill with coolant. Refer to Filling .
