Special Tools

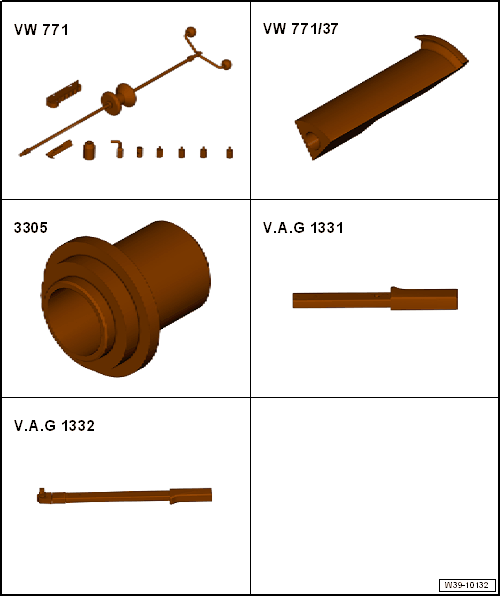

Special tools and workshop equipment required

• Slide Hammer Set: VW771
• Slide Hammer Set - Hook: VW771/37
• Seal Installer - Flange Shaft: 3305
• Torque Wrench, 6-50Nm: VAG1331A
• Torque Wrench 1332 40-200Nm: VAG1332

Special tools and workshop equipment required

• Slide Hammer Set: VW771
• Hex Ball Socket: 3247
• Holding Fixture - Spacers: VW540/1B

Special tools and workshop equipment required

• Puller - Flanged Shaft: T10037
• Seal Installer - Flange Shaft: T10049
• Socket and Extended Bit: T10107A
• Press Piece - Bushing: VW434
• Torque Wrench, 6-50Nm: VAG1331A

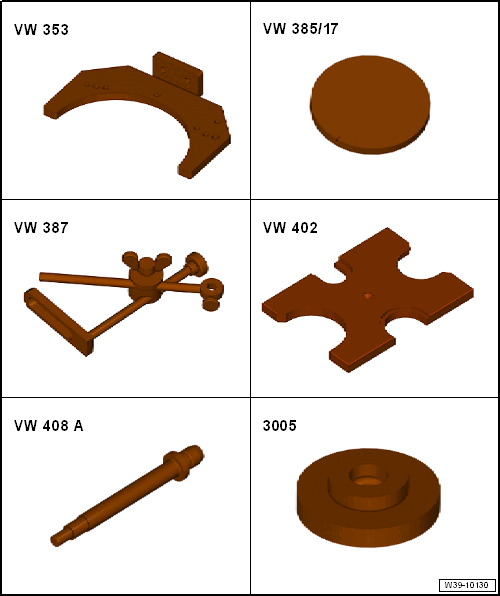

Special tools and workshop equipment required

• Transmission Support: VW353
• Measuring Set - Magnetic Plate - 50mm: VW385/17
• Dial Indicator Holder: VW387
• Press Plate: VW402
• Press Piece - Rod: VW408A
• Press Piece - Multiple Use: 3005

Special tools and workshop equipment required

• Press Plate: VW401
• Press Plate: VW402
• Not needed: Press Piece - Rod: VW407
• Not needed: Press Piece - Rod: VW408A
• Press Piece - Multiple Use: VW412
• Not needed: Press Piece - 60mm: VW418A

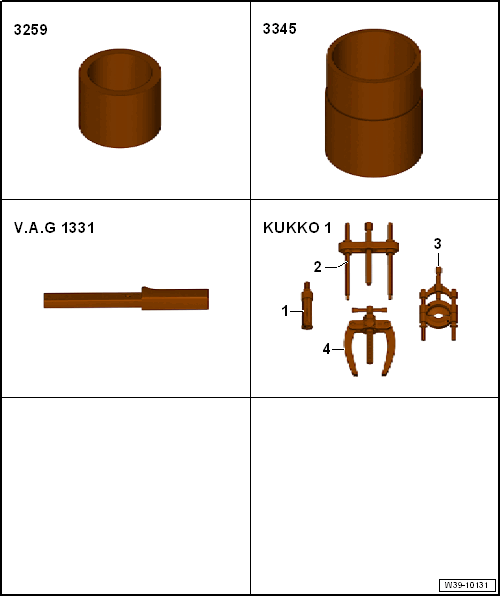

Special tools and workshop equipment required

• Press Piece - Bushing: 3259
• Bearing Installer - Wheel Bearing: 3345
• Torque Wrench, 6-50Nm: VAG1331A
• -1- Internal Puller: VAS251615  (Kukko 21/7)
• -4- Counter Support: VAS251623  (Kukko 22/2)

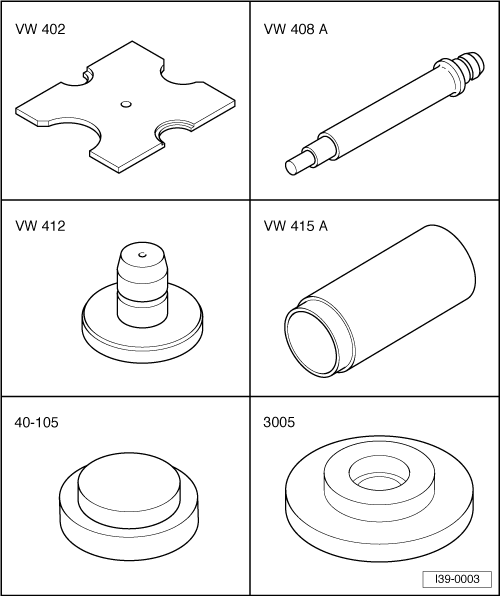

Special tools and workshop equipment required

• Press Plate: VW402
• Press Piece - Rod: VW408A
• Press Piece - Multiple Use: VW412
• Press Piece - 60mm: VW415A
• Press Piece - Multiple Use: 40-105
• Press Piece - Multiple Use: 3005

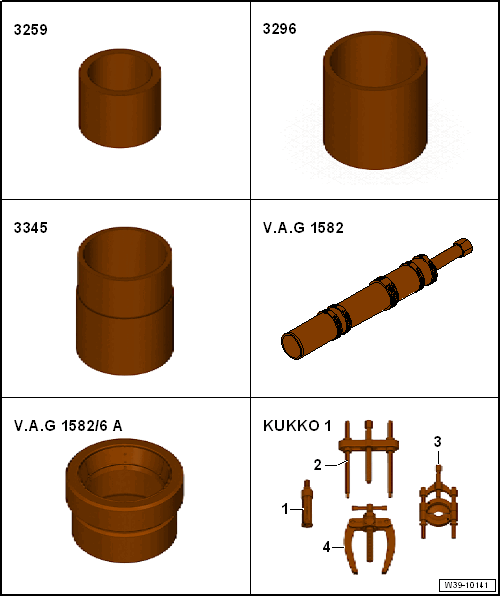

Special tools and workshop equipment required

• Press Piece - Bushing: 3259
• Press Piece - Reverse Gear Syncro: 3296
• Bearing Installer - Wheel Bearing: 3345
• Puller - Taper Roller Bearing: VAG1582
• Puller - Taper Roller Bearing - Adapter 6A: VAG1582/6A
• -1- Internal Puller: VAS251615  (Kukko 21/7)
• -2- Puller: VAS251417  (Kukko 18-1)
• -3- Splitter: VAS251409  (Kukko 17-1)
• -4- Counter Support: VAS251623  (Kukko 22/2)

Special tools and workshop equipment required

• Press Plate: VW402
• Press Piece - Rod: VW408A
• Press Piece - Rod: VW411
• Press Piece - Multiple Use: VW412
• Press Piece - Multiple Use: 30-23
• Press Piece - Multiple Use: 40-105

Special tools and workshop equipment required

• Press Plate: VW401
• Press Plate: VW402
• Press Piece - Rod: VW407
• Press Piece - Multiple Use: VW412
• Press Piece - Multiple Use: VW454
• Press Piece - Multiple Use: VW455

Special tools and workshop equipment required

• Support Channels: VW457
• Press Piece - Reverse Gear Syncro: 3296
• Gearbox Support: T10108
• Gearbox Support: T10108/1
• Puller - Taper Roller Bearing: VAG1582  with a short sleeve
• Puller - Taper Roller Bearing - Adapter 13: VAG1582/13
• Torque Wrench 1601: VAG1601

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

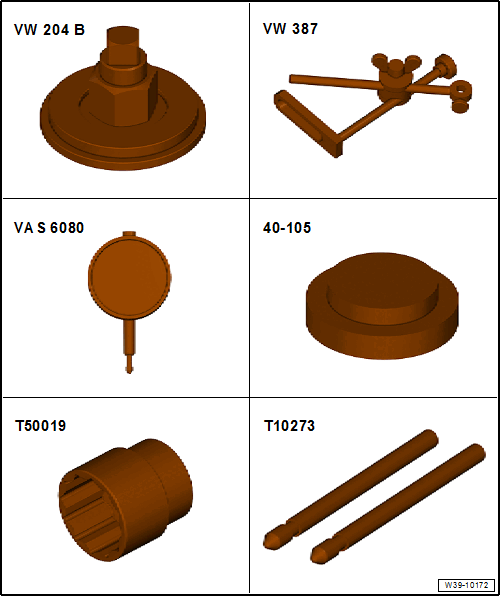

Special tools and workshop equipment required

• Seal Installer - Crankshaft: VW204B
• Dial Indicator Holder: VW387
• Dial Indicator: VAS6080A
• Press Piece - Multiple Use: 40-105
• Socket AF 34 mm: T50019
• Two M8 x 30 mm stud bolts or Guide Pins - M8: T10273
• Shop Crane - Drip Tray: VAS6208
• or Shop Crane - Drip Tray: VAS6208
• Sealing Grease
• Universal Grease
• Refer to the Parts Information for the grease allocation.
• M10 x 30 bolts (quantity: 2)
• M12 x 10 nuts (quantity: 4)

Special tools and workshop equipment required

• Press Piece - Multiple Use: 3005
• Press Piece - Bushing: 3259
• Press Piece - Reverse Gear Syncro: 3296
• Subframe Bushing Tool Kit: 3301
• Bearing Installer - Wheel Bearing: 3345
• -1- Internal Puller: VAS251615  (Kukko 21/7)
• -2- Puller: VAS251417  (Kukko 18-1)
• -3- Splitter: VAS251409  (Kukko 17-1)
• -4- Counter Support: VAS251623  (Kukko 22/2)

Special tools and workshop equipment required

• Used Oil Collection and Extraction Unit: SMN 272500
  Fig 13: Identifying Used Oil Collection and Extraction Unit

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Bearing Installer - Needle Bearing: T10047

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Seal Installer - Selector Shaft: T10135
  Fig 14: Identifying Thrust Piece T10135

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Seal Installer - Bevel Box: T10243
  Fig 15: Seal Installer - Bevel Box T10243

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Seal Installer - Bevel Box: T10298
  Fig 16: Seal Installer - Bevel Box T10298

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Thrust Piece: T10546
  Fig 17: Thrust Piece T10546

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Thrust Piece: T10547
  Fig 18: Identifying Thrust Piece T10547

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Thrust Piece: T10548
  Fig 19: Identifying Thrust Piece T10548

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Puller - Crankshaft/Power Steering Seal: T20143/2
  Fig 20: Crankshaft / Power Steering Seal Puller

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Torque Wrench, 6-50Nm: VAG1331A
  Fig 21: Identifying Torque Wrench

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Torque Wrench 1410: VAG1410
  Fig 22: Identifying Torque Wrench 1410 VAG1410

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Dial Indicator: VAS6080A
  Fig 23: Dial Gauge - 0-3mm VAS6080

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Shop Crane - Drip Tray: VAS6208
  Fig 24: Identifying Drip Tray

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Charging Device for AWD Clutch Coupling 2: VAS6291A
  Fig 25: Identifying Charging Device For Haldex Coupling 2VAS6291A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Charging Device For AWD Clutch Coupling 2 - Adapter 3: VAS6291/3
  Fig 26: Identifying Charging Device For Haldex Coupling 2 - Adapter 3VAS6291/3

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• The Oil Filler - Adapter 6: VAS6262/6  must also be used on some fluid containers.
  Fig 27: Identifying Oil Container Adapter (VAS 6262/6)

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Digital Thermometer: VAS6519
  Fig 28: Identifying Digital Thermometer VAS 6519

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Flexible Funnel: VAS6675
  Fig 29: Identifying Flexible Funnel VAS 6675

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

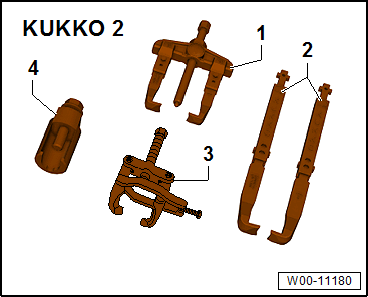

• -3- Two-Arm Puller: VAS251007  (Kukko 204-2)
  Fig 30: Identifying Puller - Kukko 2

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Press Piece - Multiple Use: VW473
  Fig 31: Identifying Press Piece - Multiple Use VW473

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Rear Wheel Bearing Kit - Piece 5: 3253/5

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
