Right Seal, Replacing, AWD: Removing

WARNING: This page is about a different variant/trim than selected.

Fig 1: Identifying Left Front Drive Axle Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The right drive axle must be removed later in the procedure.

-- With the vehicle still standing on its wheels, loosen the right front collar bolt -arrow- a maximum of 90°. Otherwise the wheel bearing will get damaged. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- If equipped, remove the heat shield -A- for the drive axle -C- -arrows 1-.

Fig 2: Identifying Heat Shield

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The heat shield for the right drive axle is attached with two or three nuts. Refer to DRIVE AXLE HEAT SHIELD, REMOVING AND INSTALLING .

-- Place the Drip Tray underneath.

-- Remove the right drive axle -C-. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

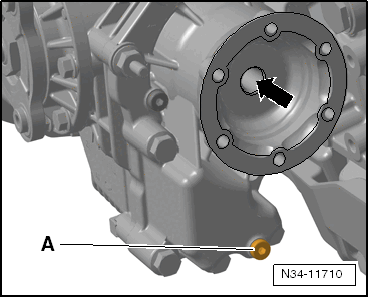

-- Drain the fluid from the bevel box, bolt -A-.

Fig 3: Drain Fluid From Bevel Box

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Then install the new bolt and tighten. Refer to OVERVIEW - BEVEL BOX COMPONENTS .

-- Use a Socket to remove the right flange shaft bolt -arrow- Insert two bolts in the flange and counterhold the flange shaft with the tire iron.

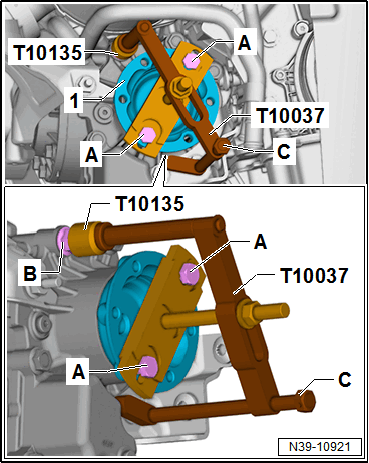

-- Remove the flange shaft -1- using the : T10037 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-A- = M 10 X 25 bolts

NOTE:

To remove the flange shaft, use the : T10037 to avoid damaging the bearing on the flange shaft.

At the top of the bevel box there is a hex bolt -B- with an M 8 threaded pin.

-- Place the : T10135 on this hex bolt to support the : T10037 .

-- Align the : T10037 parallel to the flange using the Spindle -C-.

-- Remove the flange shaft.

-- Pry out the flange shaft seal using a lever.
