Special Tools

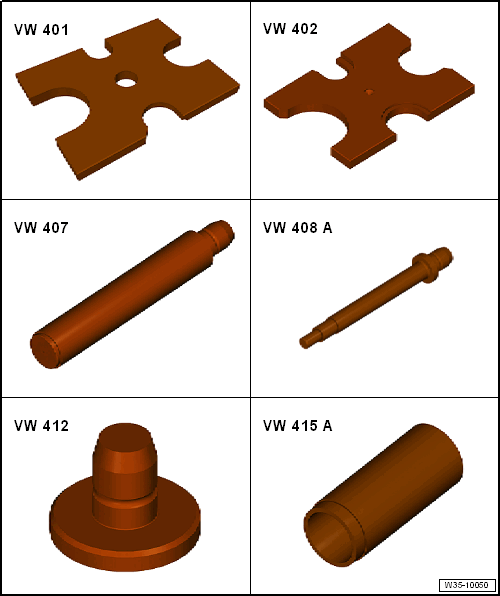

Special tools and workshop equipment required

• Press Plate: VW401
• Press Plate: VW402
• Press Piece - Rod: VW407
• Press Piece - Rod: VW408A
• Press Piece - Multiple Use: VW412
• Press Piece - Multiple Use: VW454

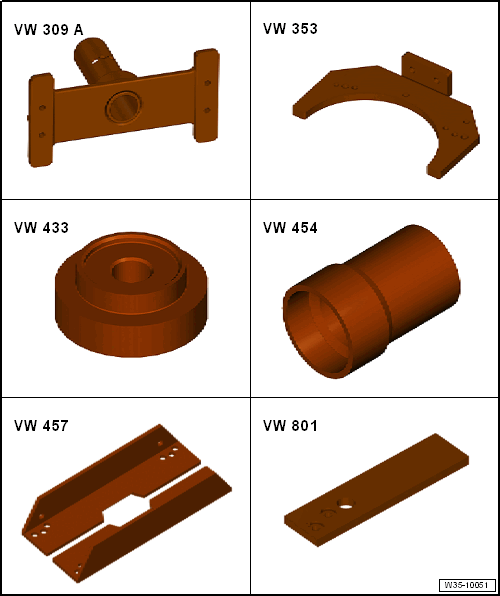

Special tools and workshop equipment required

• Holding Plate: VW309A
• Transmission Support: VW353
• Press Piece - Multiple Use: VW433
• Press Piece - Multiple Use: VW454
• Support Channels: VW457
• Crankshaft Holding Fixture: VW801

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

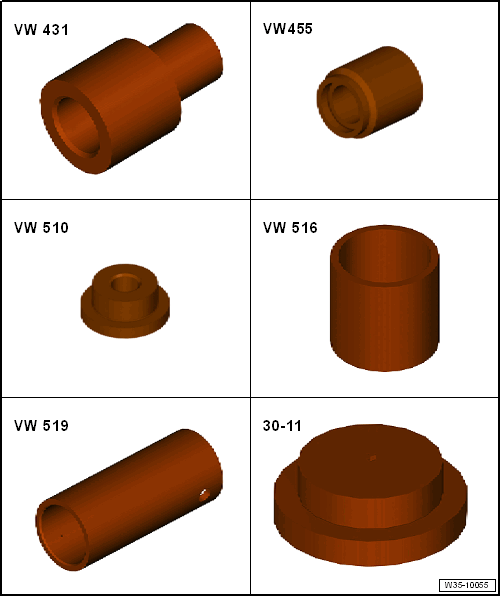

Special tools and workshop equipment required

• Press Piece - Multiple Use: VW431
• Press Piece - Multiple Use: VW455
• Press Piece - Multiple Use: VW510
• Press Piece - 42mm: VW516
• Press Piece - Multiple Use: VW519
• Press Piece - Multiple Use: 30-11

Special tools and workshop equipment required

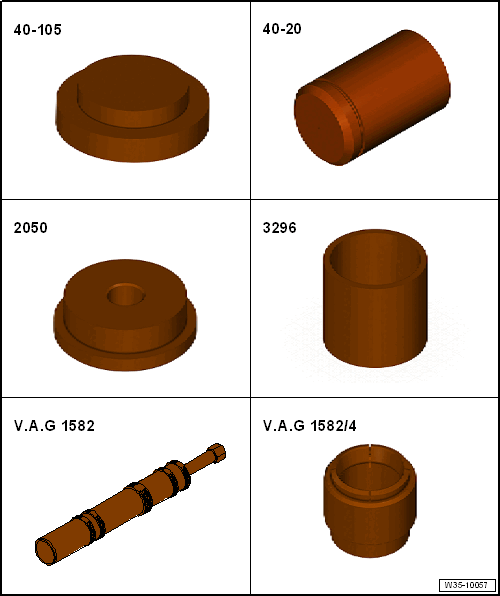

• Press Piece - Multiple Use: 40-105
• Bearing Installer - Multiple Use: 40-20
• Slide Hammer - Press Plate: 2050
• Press Piece - Reverse Gear Syncro: 3296
• Puller - Taper Roller Bearing: VAG1582
• Puller - Taper Roller Bearing - Adapter 4: VAG1582/4

Special tools and workshop equipment required

• Press Plate: VW401
• Press Plate: VW402
• Press Piece - Rod: VW407
• Press Piece - Rod: VW408A
• Press Piece - Multiple Use: VW412
• Press Piece - 60mm: VW415A

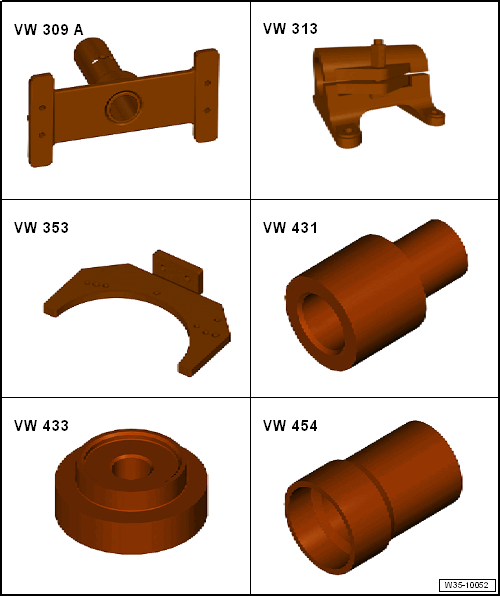

Special tools and workshop equipment required

• Holding Plate: VW309A
• Holding Fixture: VW313
• Transmission Support: VW353
• Press Piece - Multiple Use: VW431
• Press Piece - Multiple Use: VW433
• Press Piece - Multiple Use: VW454

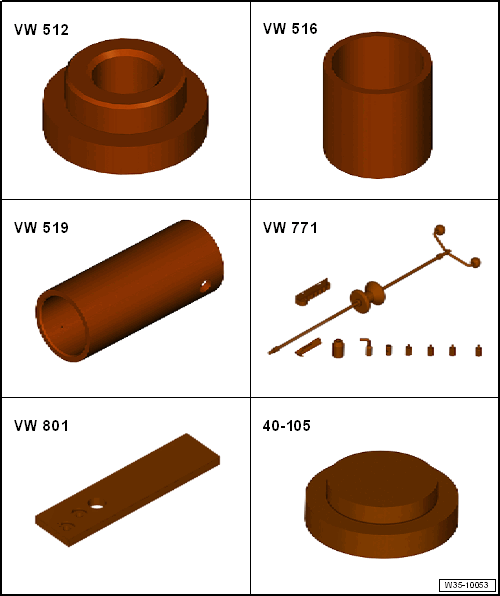

Special tools and workshop equipment required

• Press Piece - Multiple Use: VW512
• Press Piece - 42mm: VW516
• Press Piece - Multiple Use: VW519
• Slide Hammer Set: VW771
• Crankshaft Holding Fixture: VW801
• Press Piece - Multiple Use: 40-105

Special tools and workshop equipment required

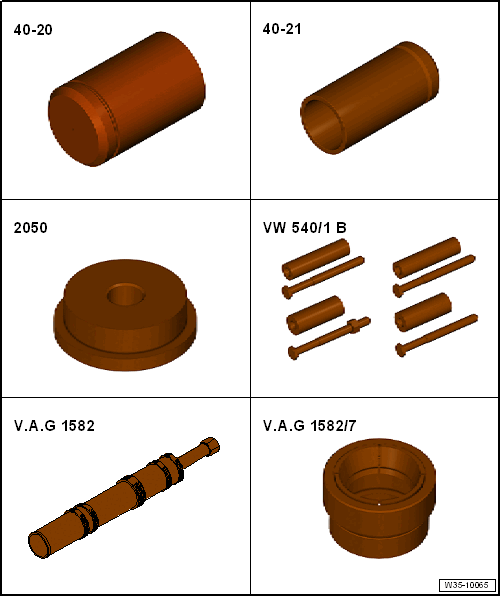

• Bearing Installer - Multiple Use: 40-20
• Bearing Installer - Differential Bearing: 40-21
• Slide Hammer - Press Plate: 2050
• Holding Fixture - Spacers: VW540/1B
• Puller - Taper Roller Bearing: VAG1582
• Puller - Taper Roller Bearing - Adapter 7: VAG1582/7

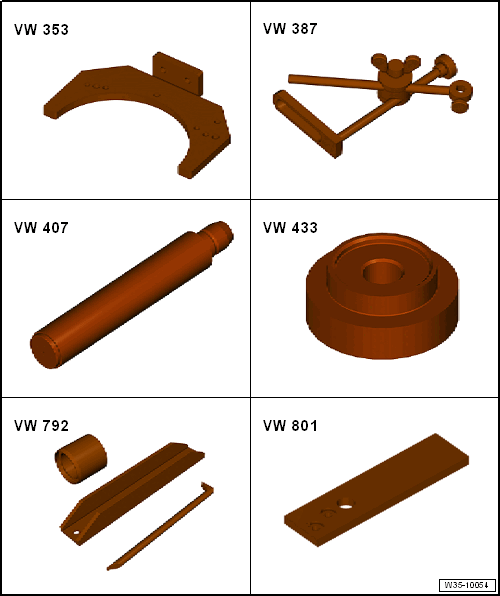

Special tools and workshop equipment required

• Transmission Support: VW353
• Dial Indicator Holder: VW387
• Press Piece - Rod: VW407
• Press Piece - Multiple Use: VW433
• Seal Installer - Stator: VW792
• Crankshaft Holding Fixture: VW801

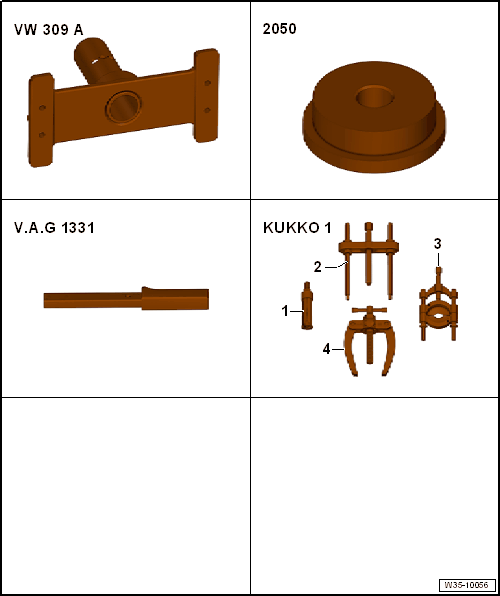

Special tools and workshop equipment required

• Holding Plate: VW309A
• Slide Hammer - Press Plate: 2050
• Torque Wrench, 6-50Nm: VAG1331A
• -1- Internal Puller: VAS251615  (Kukko 21/7)
• -4- Counter Support: VAS251623  (Kukko 22/2)

Special tools and workshop equipment required

• Puller - Crankshaft/Power Steering Seal: T20143/1
  Fig 10: Crankshaft / Power Steering Seal Puller

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Seal Installer - Driveshaft: T40008
  Fig 11: Identifying Seal Installer - Drive Axle

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

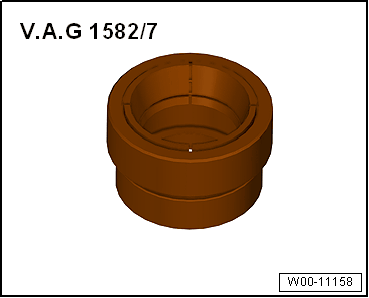

• Puller - Taper Roller Bearing - Adapter 7: VAG1582/7
  Fig 12: Puller - Taper Roller Bearing - Adapter 7 VAG1582/7

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Dial Indicator: VAS6080A
  Fig 13: Dial Gauge - 0-3mm VAS6080

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Inductive Heater: VAS6414
  Fig 14: Identifying Heater

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• -1- Internal Puller: VAS251611  (Kukko 21-5)
  Fig 15: Identifying Kukko Puller

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• -3- Splitter: VAS251411  (Kukko 17-2)
• -4- Counter Support: VAS251623  (Kukko 22/2)
• -1- Internal Puller: VAS251615  (Kukko 21/7)
  Fig 16: Identifying Kukko Puller

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• -1- Puller - Roller Bearing: VAS6775  (Kukko 21-8)
• -2- Puller: VAS251419  (Kukko 18-2)
• -3- Splitter: VAS251411  (Kukko 17-2)
• -4- Counter Support: VAS251623  (Kukko 22/2)
• Press Piece - Bushing - 50mm Diameter: VW432
  Fig 17: Press Piece - Bushing - 50mm Diameter VW432

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Bearing Installer - Multiple Use: 32-111
  Fig 18: Bearing Installer - Multiple Use 32 - 111

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Feeler Gauge
