Overview - Gearshift Knob And Cover

WARNING: This page is about a different variant/trim than selected.

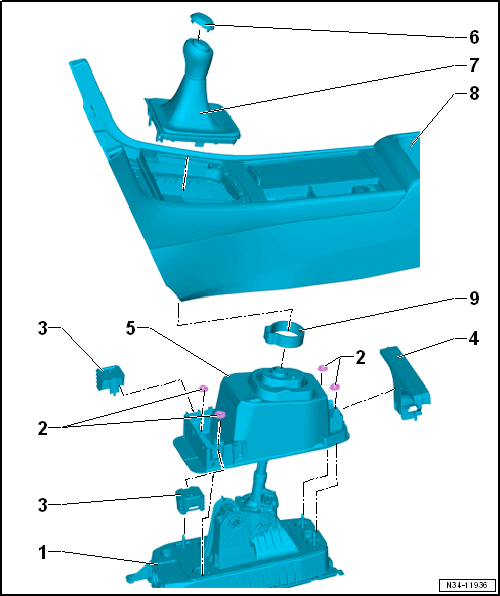

Fig 1: Exploded View Of Gearshift Knob & Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Gearshift Housing with Gearshift Lever
Nut
- M 6: 8 Nm
- M 8: 20 Nm
Bracket
- For the center console
- Overview. Refer to OVERVIEW - CENTER CONSOLE .
Bracket
- For the center console
- Overview. Refer to OVERVIEW - CENTER CONSOLE .
Noise Insulation
Badge
- Can be carefully pried off the plastic or leather gearshift knob using the Trim Removal Wedge: 3409 .
Gearshift Knob
- Always replace together
- With boot
- The shift knob and boot cannot be separated from each other.
- Removing and installing. Refer to GEARSHIFT KNOB, REMOVING AND INSTALLING .
Center Console
- Overview. Refer to OVERVIEW - CENTER CONSOLE .
Clamp
- Replace after removing
- For securing the gearshift knob to the selector lever
- Secure on the gearshift knob using Hose Clamp Pliers: VAG1275 .
