Right Seal, Replacing: Installing
WARNING: This page is about a different variant/trim than selected.
-- Coat the outer edge and sealing lips on the new seal with transmission fluid.
- Installation position: open side of the seal faces the transmission.
-- Immediately mount the seal by hand and push it in as far as possible so that it is secure in the transmission housing.

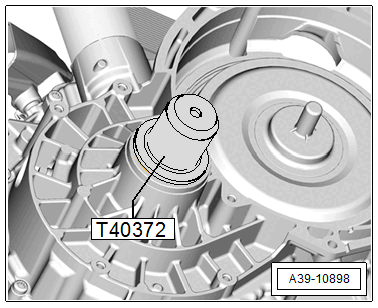

-- Drive in the seal all the way using the : T40372 ; do not tilt the seal while doing so.
-- Install the right drive axle. Refer to DRIVE AXLE, REMOVING AND INSTALLING .
-- Check and fill the transmission fluid level. Refer to TRANSMISSION FLUID LEVEL, CHECKING .
