Right Seal On Outer Front Axle Differential Lock, Replacing: Removing

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Drain the oil from the front axle differential lock. Refer to FRONT AXLE DIFFERENTIAL LOCK FLUID, DRAINING AND FILLING .

-- Remove the drive axle heat shield -arrows-. Refer to DRIVE AXLE HEAT SHIELD, REMOVING AND INSTALLING .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the right drive axle. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

-- Use a Socket to remove the right flange shaft bolt -arrow- Insert two bolts in the flange and counterhold the flange shaft with the tire iron.

Fig 1: Installing Bolts Into Flange And Counter-Holding Flange Shaft Using A Pry Bar

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

VW771, Completing with VW 540/1B.

Fig 2: Complete The Slide Hammer Set VW771 Using The Holding Fixture - Spacers VW540/1B.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

a -  Washer

-- Bolt the flange shaft to the : VW771  and remove it.

• The flange shaft is secured with a circlip -arrow-.
  Fig 3: Flange Shaft To Slide Hammer Set VW771

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Please check whether the circlip -arrow- is equipped.

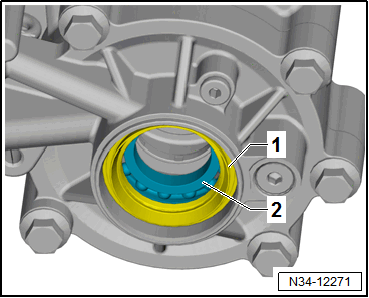

If necessary, remove the circlip from the seal area -1- or near the ball bearing -2-.

Fig 4: Removing Circlip From Seal Area

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pry the seal -1- out of the flange shaft with a lever.
