Flange Shaft Ball Bearing, Replacing: Installing

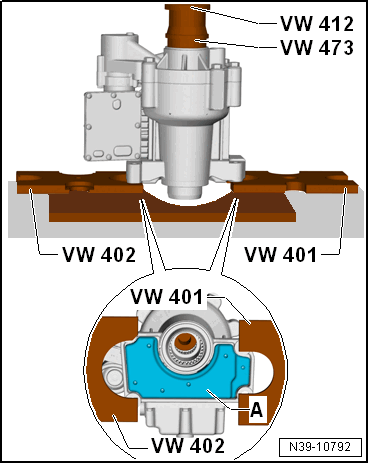

Fig 1: Offset Side Of Press Piece - Multiple Use VW473 Faces Ball Bearing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• The offset side of the : VW473  faces the ball bearing.
• Place the : VW473  centered on the ball bearing.
• The plastic container -A- must not be damaged.

-- Install the flange shaft ball bearing all the way.

-- Secure the ball bearing with a new circlip.

-- Install the flange shaft seal RIGHT SEAL ON OUTER FRONT AXLE DIFFERENTIAL LOCK, REPLACING .

-- Install the flange shaft. Refer to Figure.

-- Install front axle differential lock. Refer to FRONT AXLE DIFFERENTIAL LOCK, INSTALLING .
