Special Tools

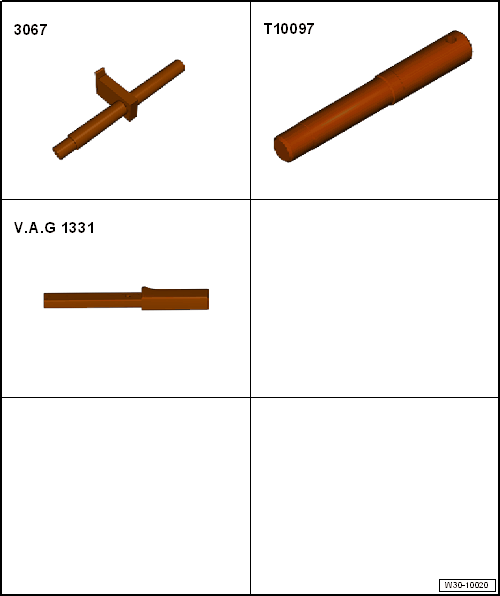

Fig 1: Identifying Flywheel Retainer, Alignment Tool And Torque Wrench

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Flywheel Retainer :3067
• Alignment Tool - Clutch Plate :T10097
• Torque Wrench, 6-50Nm :VAG1331A
• Grease for Clutch Plate Shaft Splines. Refer to Parts Information.

Special tools and workshop equipment required

• Sealing Tool :T10249
  Fig 2: Identifying Sealing Tool

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Brake Charger/Bleeder Unit :VAS5234
  Fig 3: Identifying Brake Charger/Bleeder Unit

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Hose Clamps - Up To 25 mm :3094
  Fig 4: Hose Clamps

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Alignment Tool - Clutch Plate :3176  .
  Fig 5: Identifying Alignment Tool - Clutch Plate

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Not Illustrated:
• Bleeder Hose (670 mm) : VAG1238/B3
