Clutch, Removing And Installing, With Dual Mass Flywheel, SACHS: Notes
WARNING: This page is about a different variant/trim than selected.
Special tools and workshop equipment required
- Flywheel Retainer :3067
- Alignment Tool - Clutch Plate :T10097
- Torque Wrench, 6-50Nm :VAG1331A
- Grease for Clutch Plate Shaft Splines. Refer to Parts Information.

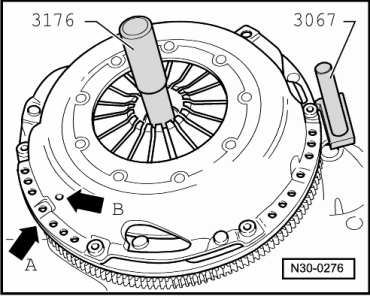

- For engines that have a crankshaft with a smaller diameter, or engines with a needle bearing in the crankshaft, use the Alignment Tool - Clutch Plate :3176 . Refer to Figure.
