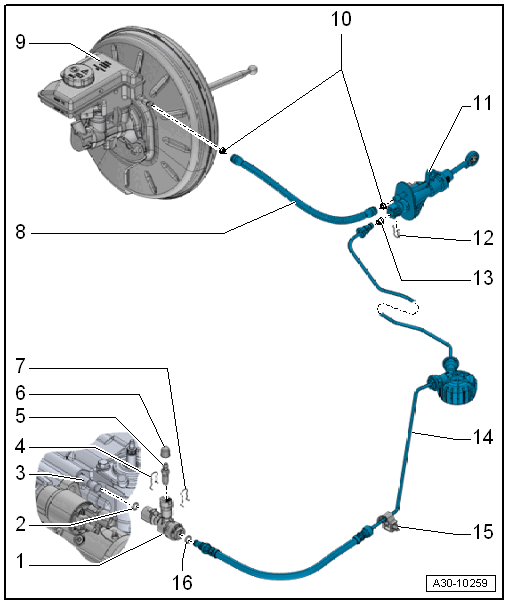

Overview - Clutch Hydraulics, RHD Vehicles
WARNING: This page is about a different variant/trim than selected.
- Bleeder
- Seal/O-Ring
- Replace if damaged
- Install on the line connection
- Install with brake fluid
- Seals/O-rings suitable for the line connection version. Refer to Figure.
- Clutch Slave Cylinder
- Can only be replaced when the transmission is removed
- Removing and installing. Refer to CLUTCH SLAVE CYLINDER WITH RELEASE BEARING, REMOVING AND INSTALLING .
- Clip
- The clamp must be removed in order to remove/install the hose/line assembly
- Bleeder Valve
- Bleeding the clutch mechanism. Refer to CLUTCH MECHANISM, BLEEDING .
- Flat on both sides: seal off to stop.
- 4.5 Nm
- Dust Cap
- Clip
- The clamp must be removed in order to remove/install the hose/line assembly
- Hose
- Brake Fluid Reservoir
- Seals
- Must be located inside the hose.
- Clutch Master Cylinder
- Removing and installing. Refer to CLUTCH MASTER CYLINDER, REMOVING AND INSTALLING .
- Clip
- The clamp must be removed in order to remove/install the hose/line assembly
- Seal/O-Ring
- Replace if damaged
- Install on the line connection
- Install with brake fluid
- Seals/O-rings suitable for the line connection version. Refer to Figure.
- Hose/Line Assembly
- With frequency modulator
- not on all vehicles
- Bracket
- For hose/line assembly
- Seal/O-Ring
- Replace if damaged
- Install on the line connection
- Install with brake fluid
- Seals/O-rings suitable for the line connection version. Refer to Figure.
