Clutch Position Sensor -G476-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Move the driver seat as far back as possible.

-- Remove the driver side footwell cover, if equipped. Refer to STORAGE COMPARTMENTS AND COVERS .

-- Disconnect the connector -arrow- from the Clutch Position Sensor -G476-.

Fig 1: Electrical Components Component Location Overview (Clutch Mechanism)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

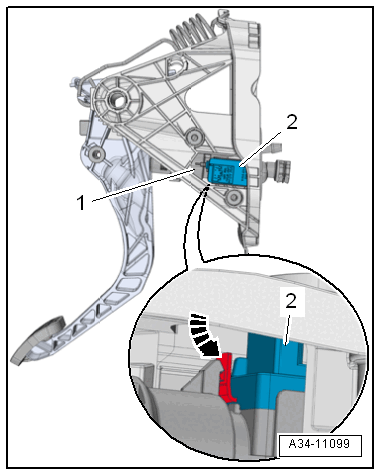

-- Release the Clutch Position Sensor -G476- -2- from the clutch master cylinder -1- -arrow- and remove it.

Fig 2: Identifying Clutch Position Sensor Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
