Clutch Pedal, Removing And Installing: Installing

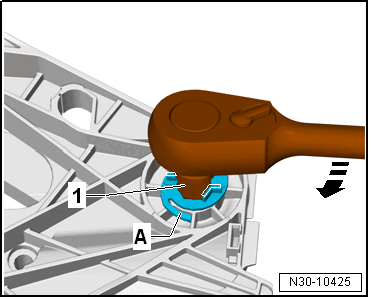

Fig 1: Identifying Clutch Pedal Bearing Axle Retainers

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install in the reverse order of removal while noting the following:

-1- = 14 mm internal socket wrench

A 14 mm hex socket wrench can also be used instead of a 14 mm internal socket wrench.

• Replace bearing axle after removing.

-- Press on the clutch pedal a little and push the new bearing axle through all the way.

-- Turn the bearing axle all the way to the right, in direction of -arrow-.

• The retainers -A- must engage audibly.

-- Install return spring in mounting bracket. Refer to RETURN SPRING, REMOVING AND INSTALLING , or over-center spring in mounting bracket OVER-CENTER SPRING, REMOVING AND INSTALLING .

-- If removed, install the bracket -arrow- with Parking Aid Control Module -J446-. Refer to OVERVIEW - PARKING AID .

Fig 2: Locating Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
