Clutch Master Cylinder, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

NOTE:

Before replacing the clutch master cylinder due to an assumed defect, perform the "Guided Fault Finding" Vehicle Diagnostic Tester first.

When working inside the footwell, cover the carpet with cloths to protect it from leaking brake fluid.

-- Remove the mounting bracket. Refer to MOUNTING BRACKET, REMOVING AND INSTALLING .

-- Remove the Clutch Position Sensor -G476-. Refer to Clutch Position Sensor -G476-, REMOVING AND INSTALLING .

-- Release the retainers in direction of -arrows- and remove the mounting pin -2-.

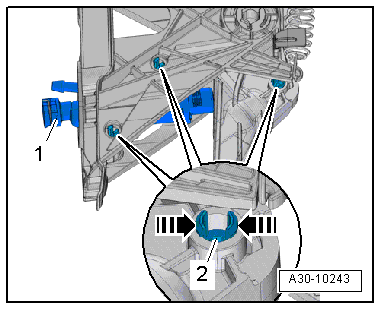

Fig 1: Identifying Clutch Master Cylinder And Retainers

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the clutch master cylinder -1-.
