Valve Body, Removing And Installing, Transmission Installed: Installing

WARNING: This page is about a different variant/trim than selected.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

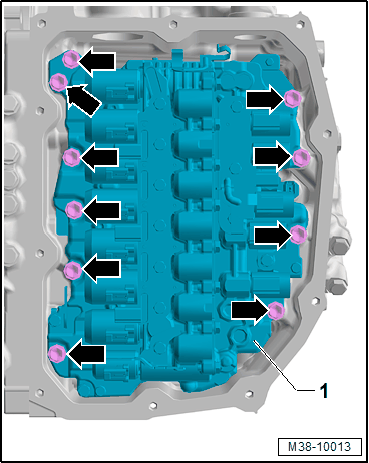

-- Tighten the bolts -arrows- for the valve body -1- in a diagonal sequence.

NOTE:

Pay attention to the wires on the transmission.

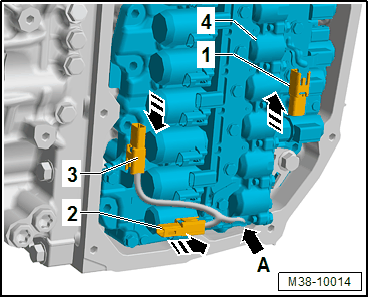

-- Install the connectors -1, 2, and 3- on the valve body -4- in the direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The connectors must audibly engage with the valve body.

-- Engage the wire on the valve body -arrow A-.

-- Install the wiring harness for the sensor and solenoid valves. Refer to SENSOR AND SOLENOID VALVE WIRING HARNESS, REMOVING AND INSTALLING .

-- Install the transmission fluid pan. Refer to TRANSMISSION FLUID PAN, REMOVING AND INSTALLING .

Further installation is performed in reverse order of removal. Note the following:

-- Fill with coolant. Refer to COOLANT, DRAINING AND FILLING .
