Transmission Input Speed Sensor -G182- AND Transmission Output Speed Sensor -G195-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the valve body. Refer to VALVE BODY, REMOVING AND INSTALLING .

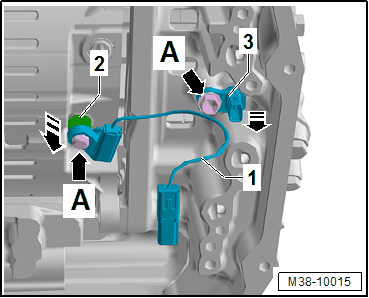

-- Remove the bolts -A arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Transmission Output Speed Sensor -G195- -1- with the spacer -2- from the transmission housing in the direction of -arrow-.

-- Remove the Transmission Input Speed Sensor -G182- -3- from the transmission housing in the direction of -arrow-.
