Sensor And Solenoid Valve Wiring Harness, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Replace the O-ring -1-.

-- Thread the wiring harnesses into the transmission housing.

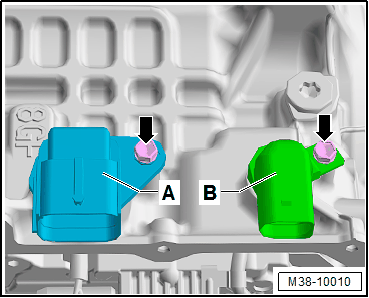

-- Push the transmission connectors -A and B- all the way into the transmission housing.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts -arrows-.

Install in reverse order of removal. Note the following:

Do not confuse the connector locations in the valve body.

-- Install the transmission fluid pan. Refer to TRANSMISSION FLUID PAN, REMOVING AND INSTALLING .

-- Fill with ATF.
