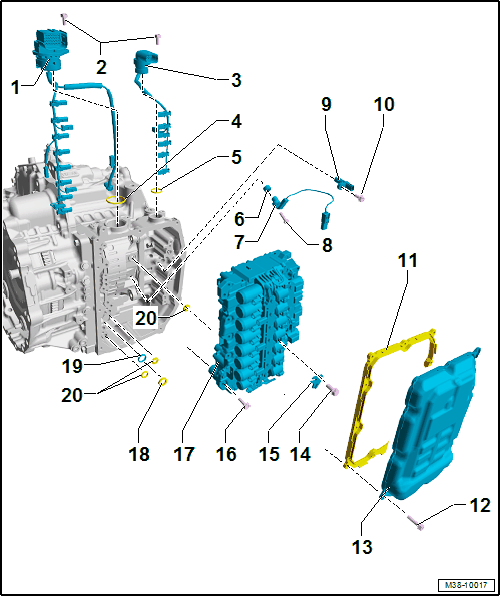

Overview - Valve Body
WARNING: This page is about a different variant/trim than selected.
- 28-Pin Transmission Connector with Wiring Harness
- Removing and installing. Refer to SENSOR AND SOLENOID VALVE WIRING HARNESS, REMOVING AND INSTALLING .
- Bolts
- 6 Nm
- For the transmission connector
- 8-Pin Transmission Connector with Wiring Harness
- Removing and installing. Refer to SENSOR AND SOLENOID VALVE WIRING HARNESS, REMOVING AND INSTALLING .
- O-Ring
- Replace after removing
- For the 28-pin transmission connector
- O-Ring
- Replace after removing
- For the 8-pin transmission connector
- Spacer
- Transmission Output Speed Sensor -G195-
- Removing and installing. Refer to Transmission Input Speed Sensor -G182- AND Transmission Output Speed Sensor -G195-, REMOVING AND INSTALLING .
- Bolt
- 7 Nm
- Transmission Input Speed Sensor -G182-
- Removing and installing. Refer to Transmission Input Speed Sensor -G182- AND Transmission Output Speed Sensor -G195-, REMOVING AND INSTALLING .
- Bolt
- 7 Nm
- Seal
- Replace a brittle, cracked or deformed seal
- Check before installing
- With spacers (quantity: 10)
- Bolt
- 7.5 Nm
- Tighten diagonally and in stages
- Oil pan to transmission
- Quantity: 10
- Transmission Fluid Pan
- Removing and installing. Refer to TRANSMISSION FLUID PAN, REMOVING AND INSTALLING .
- Bolt
- 20 Nm
- Clip
- Bolt
- 12 Nm
- Tighten diagonally and in stages
- Replace after removing
- Valve body to transmission
- Quantity: 10
- Valve Body
- Removing and installing. Refer to VALVE BODY, REMOVING AND INSTALLING .
- O-Ring
- Replace after removing
- Support Ring
- For O-ring -item ) OVERVIEW - VALVE BODY - List Item: O-Ring
- O-Rings
- Replace after removing
