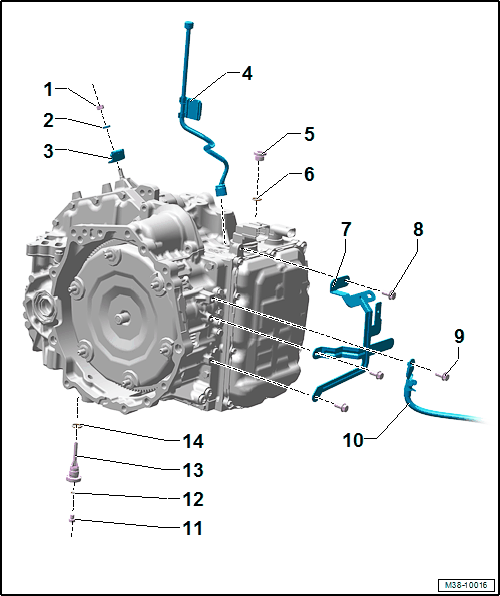

Overview - Transmission
WARNING: This page is about a different variant/trim than selected.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
- Nut
- Spring Washer
- Selector Lever
- Bleeder
- ATF Fill Plug
- O-Ring
- Bracket
- Bolts
- Bolt
- Ground Wire
- ATF Check Plug
- O-Ring
- ATF Drain Plug
- O-Ring
